The EC360® DIAMOND series means High Performance. State-of-the-art Nano-Graphene compounds, blended in a base of aluminium and magnesium particles, enable an outstandingly high thermal conductivity of 11W/mK.
Engineered with a focus on high performance, it is the perfect choice for cooling GPUs and CPUs in extreme cooling scenarios, like overclocking. In short, it ensures efficient dissipation of heat in any use case.
At the same time, it can be safely applied, it is not electrically conductive, remains easy to spread and is highly durable. Low bleed, non-flowing and low evaporation mean it is long-lasting, will stay in place and not dry out over time.
Types and Configuration

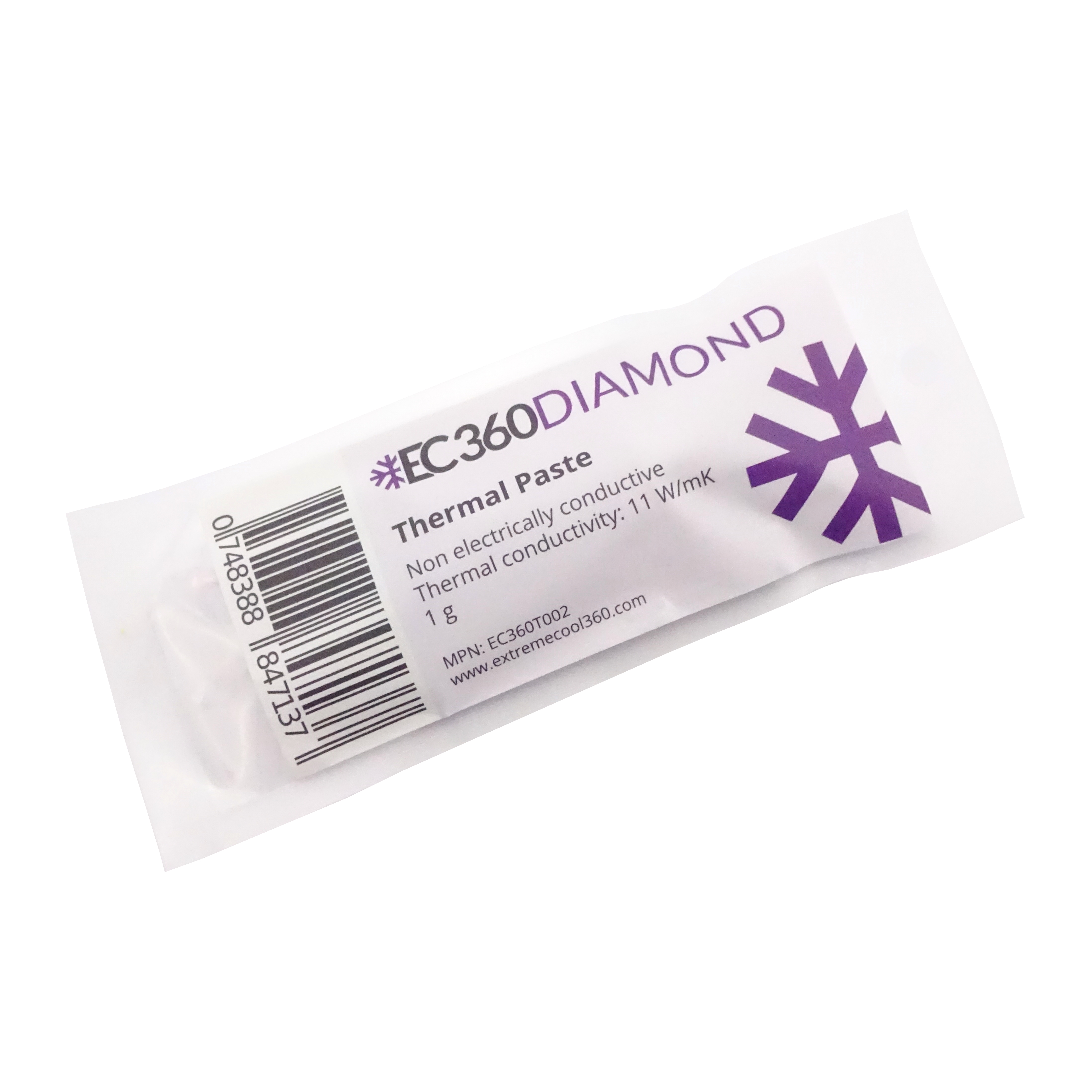

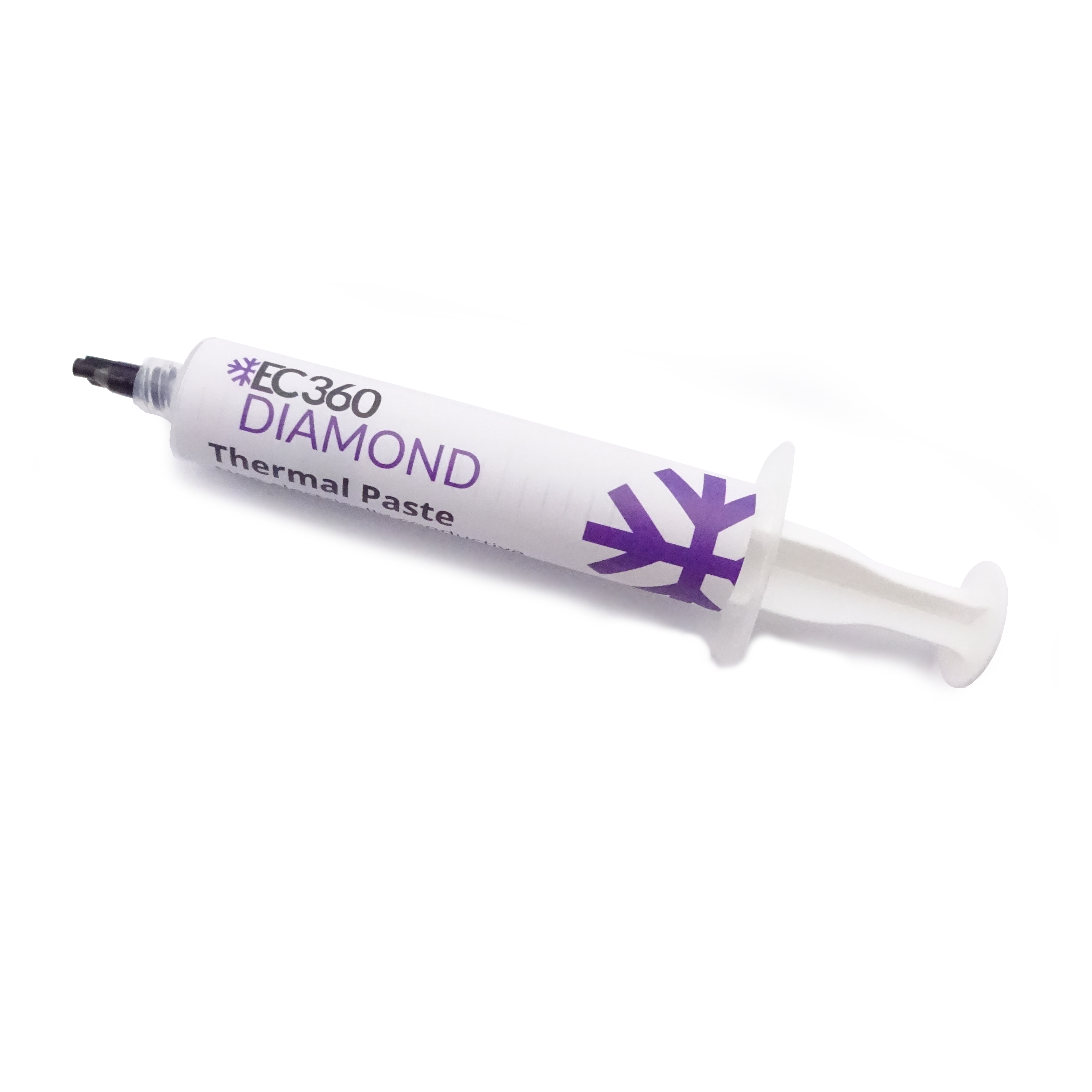

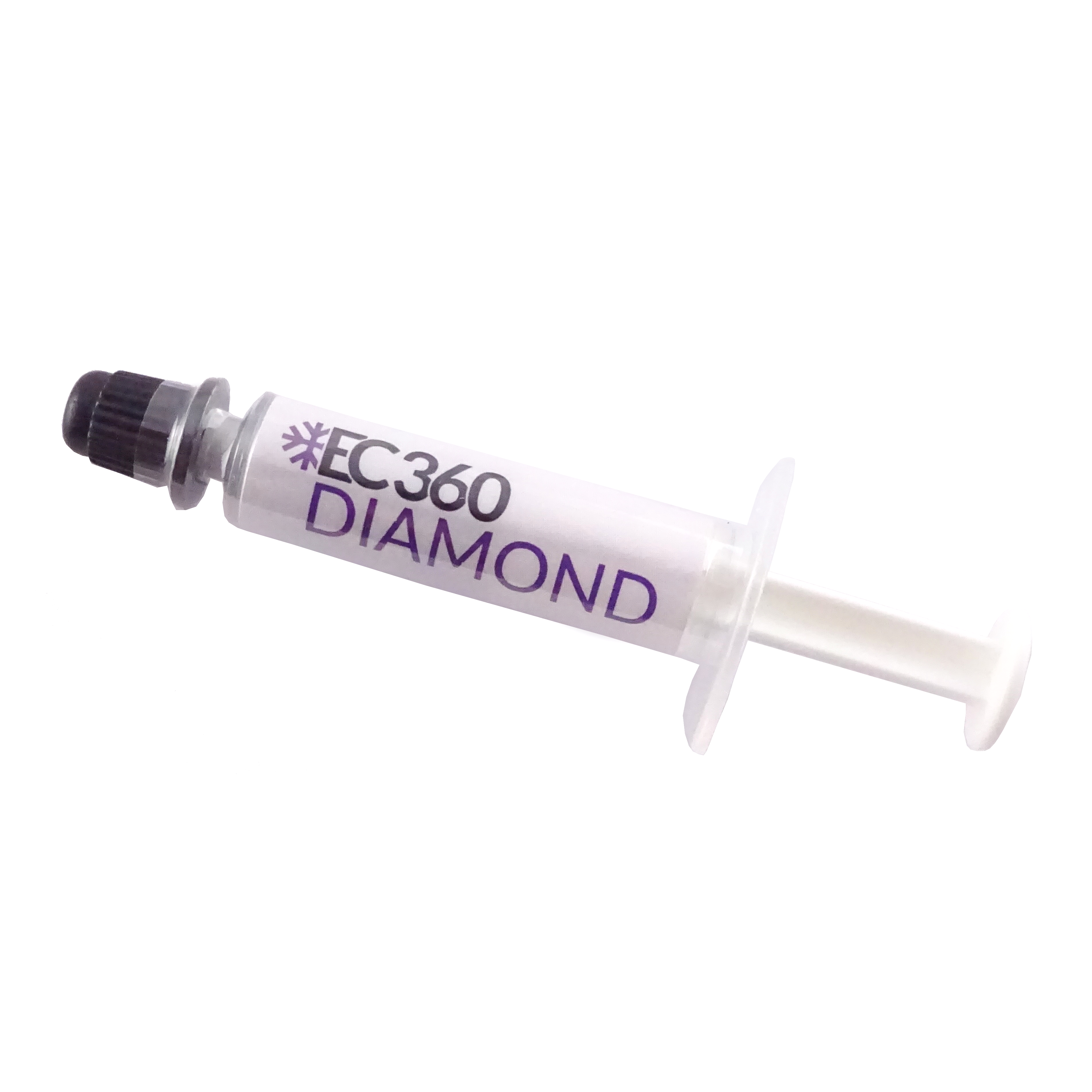

|Tube||1 g, 20 g|
|Thermal Conductivity||W/mk||11||ASTM D 5470|
|Thermal Resistance||°C-in2/W||0.0013||ASTM D 5470|
|Specific Gravity||g / cm^3||3.2||ASTM D 792|
|Evaporation (150°/24h)||%||0.15||FED STD 791|
|Volume Impedance||Ohm-cm||3.0 x10¹³||ASTM D 257|
|Dielectric Constant||1Mhz||3.0||ASTM D 150|
|Usable Temperatures||°C||-30 - 240||EN 244|
