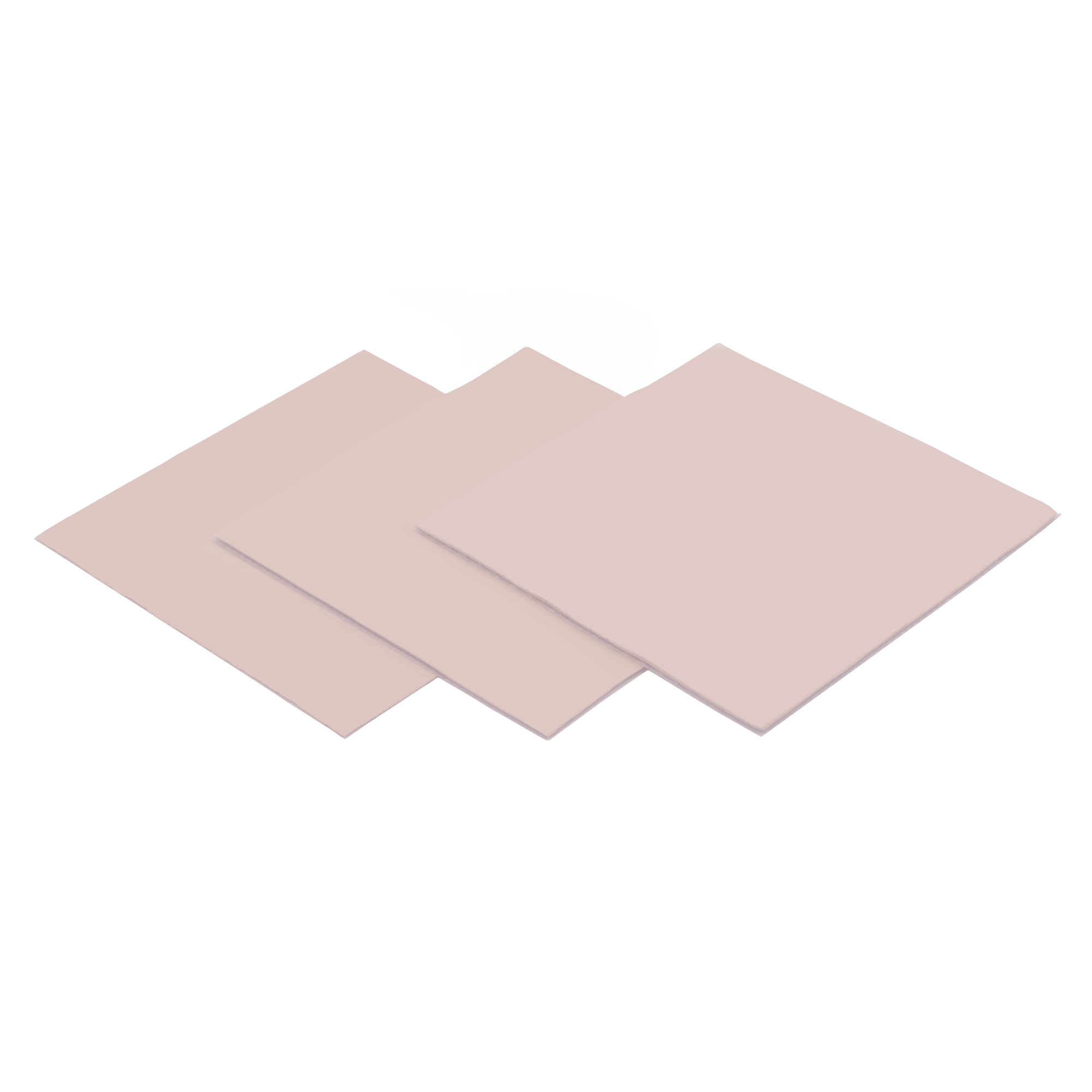

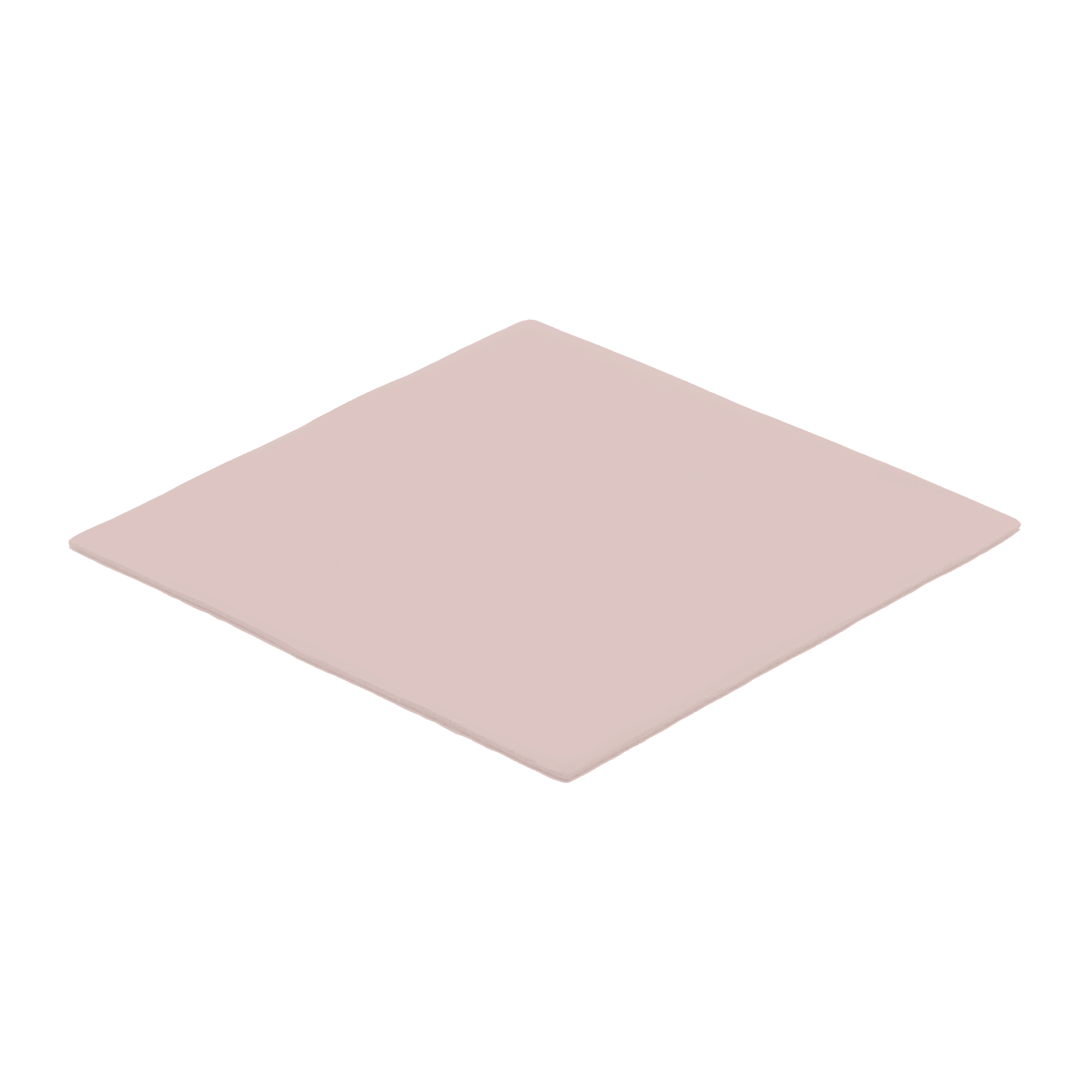

The EC360® GOLD SOFT series presents the intermediate variant of extra soft high-performance thermal pads, which are on eye-level with premium thermal paste. The pads have an extraordinary thermal conductivity of 14.5 W/mK and are suitable for a variety of applications. This extra-soft variant with a low hardness of 60 Shore 00 has a putty-like consistency and is therefore highly flexible. Under pressure they will deform and adapt permanently to the surface they are applied to and will not spring back into their original shape.

Examples of applications are the cooling of CPUs and GPUs (that are cooled by thermal pads), memory chips and other electrical components. They perform particularly well for water cooling systems and are easy to use.

The pads are not adhesive, but stick a little, so they can be easily positioned. It is the perfect solution for heat-transfer in adverse surface conditions when the use of thermal paste is unsuitable.

Handling is particularly safe, as the pads are electrically isolating and there is no risk of short-circuiting. Additionally, they can easily be cut using a scissor, which allows trimming to the perfect size for any surface.

Types and Configurations

Thickness	Available sizes
0.5 mm / 0.02 inches	50x50 mm, 100x100 mm, 200x200 mm
1.0 mm / 0.04 inches	50x50 mm, 100x100 mm, 200x200 mm
1.5 mm / 0.06 inches	50x50 mm, 100x100 mm, 200x200 mm
2.0 mm / 0.08 inches	50x50 mm, 100x100 mm, 200x200 mm

Technical Properties

Properties	Unit	Value	Test method
Color	-	red	visual
Thermal Conductivity	W/mk	14.5	ASTM D 5470
Specific Gravity	g / cm^3	3.6	ASTM D 792
Hardness	Shore OO	60	ASTM D 2240
Elongation	%	30	ASTM D 412
Volume Impedance	Ohm-cm	7.0 x 10¹⁴	ASTM D 257
Breakdown Voltage	kV/mm	4.0	ASTM D 149
Usable Temperatures	°C	-50 - 150	EN 344
Flame Rating	-	VO	UL 94

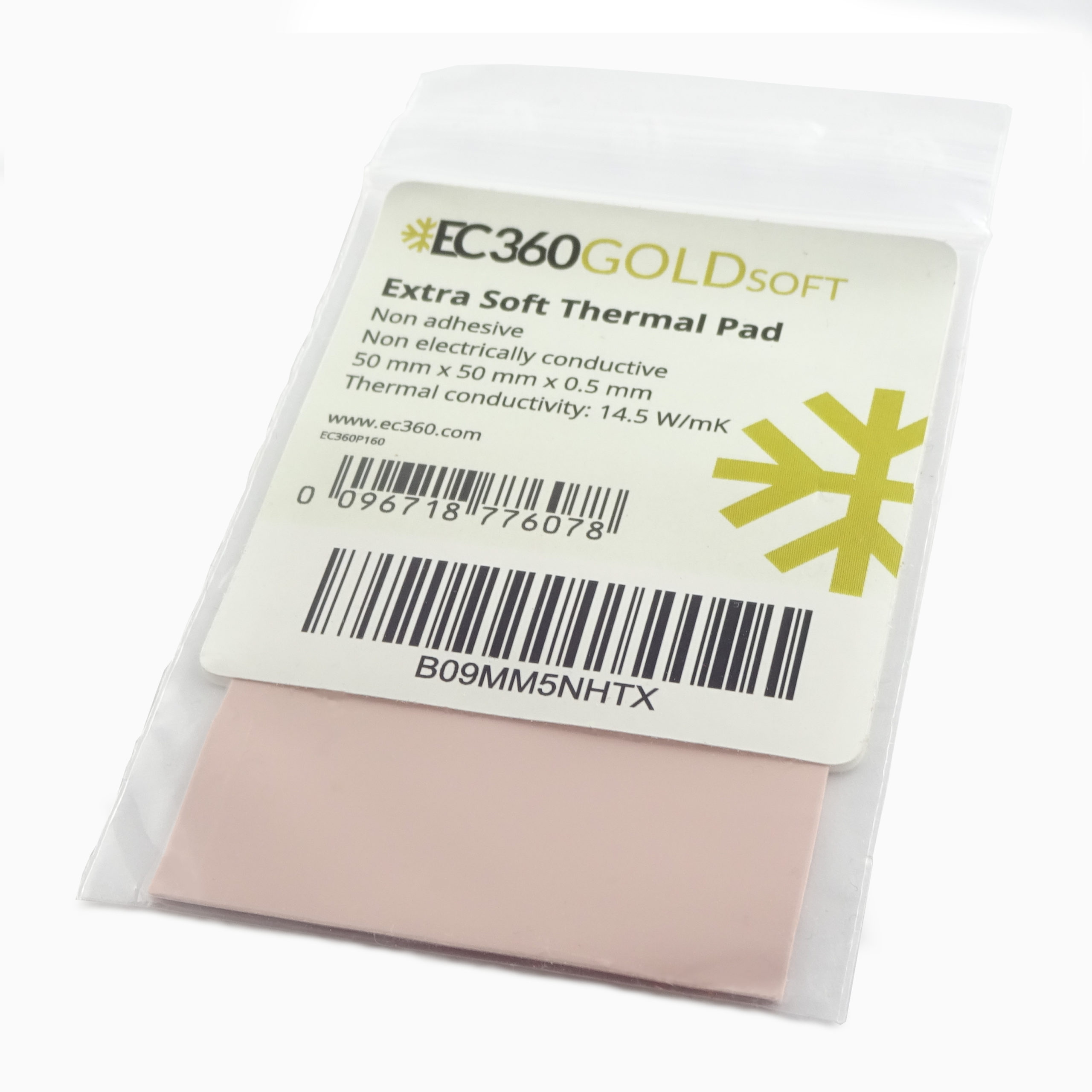

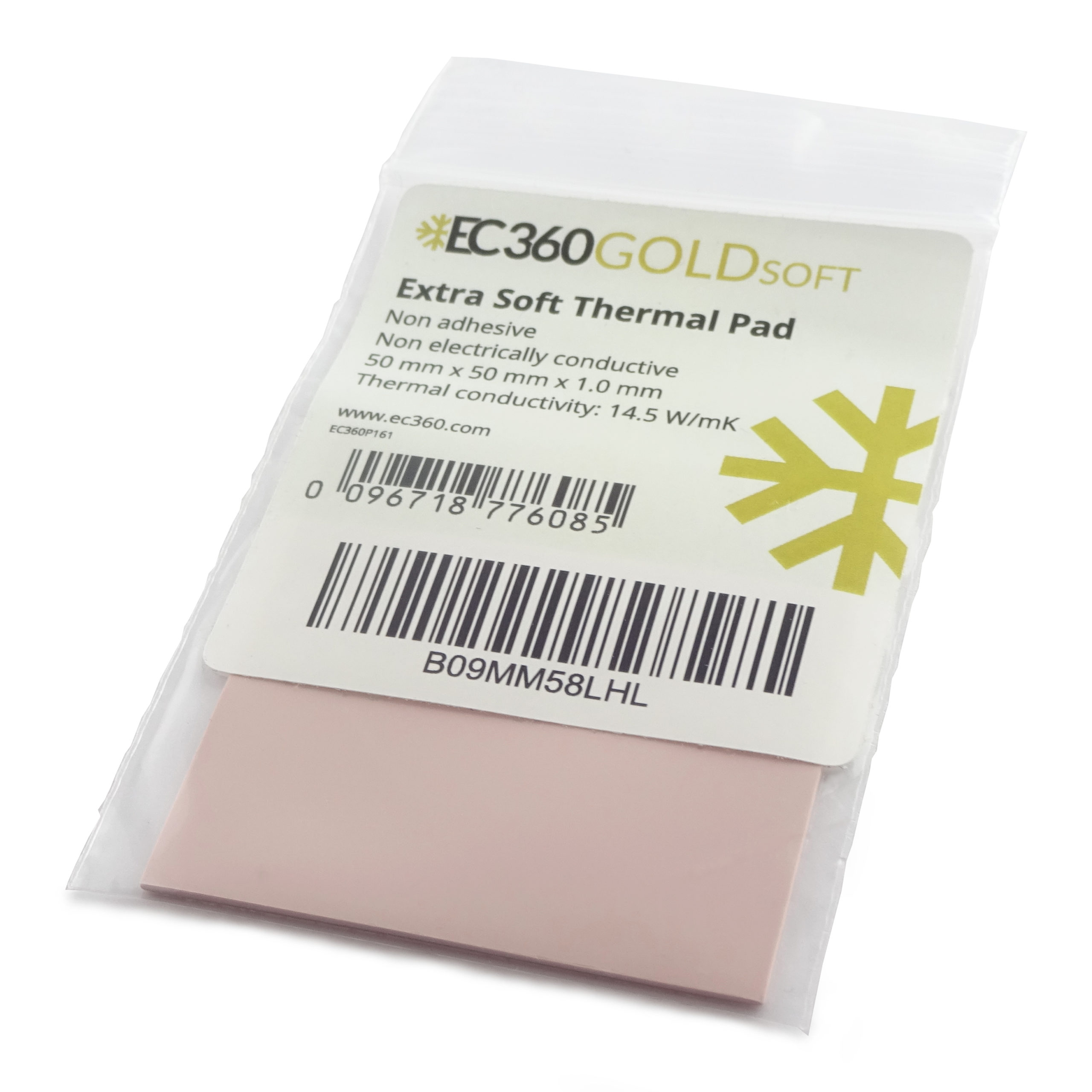

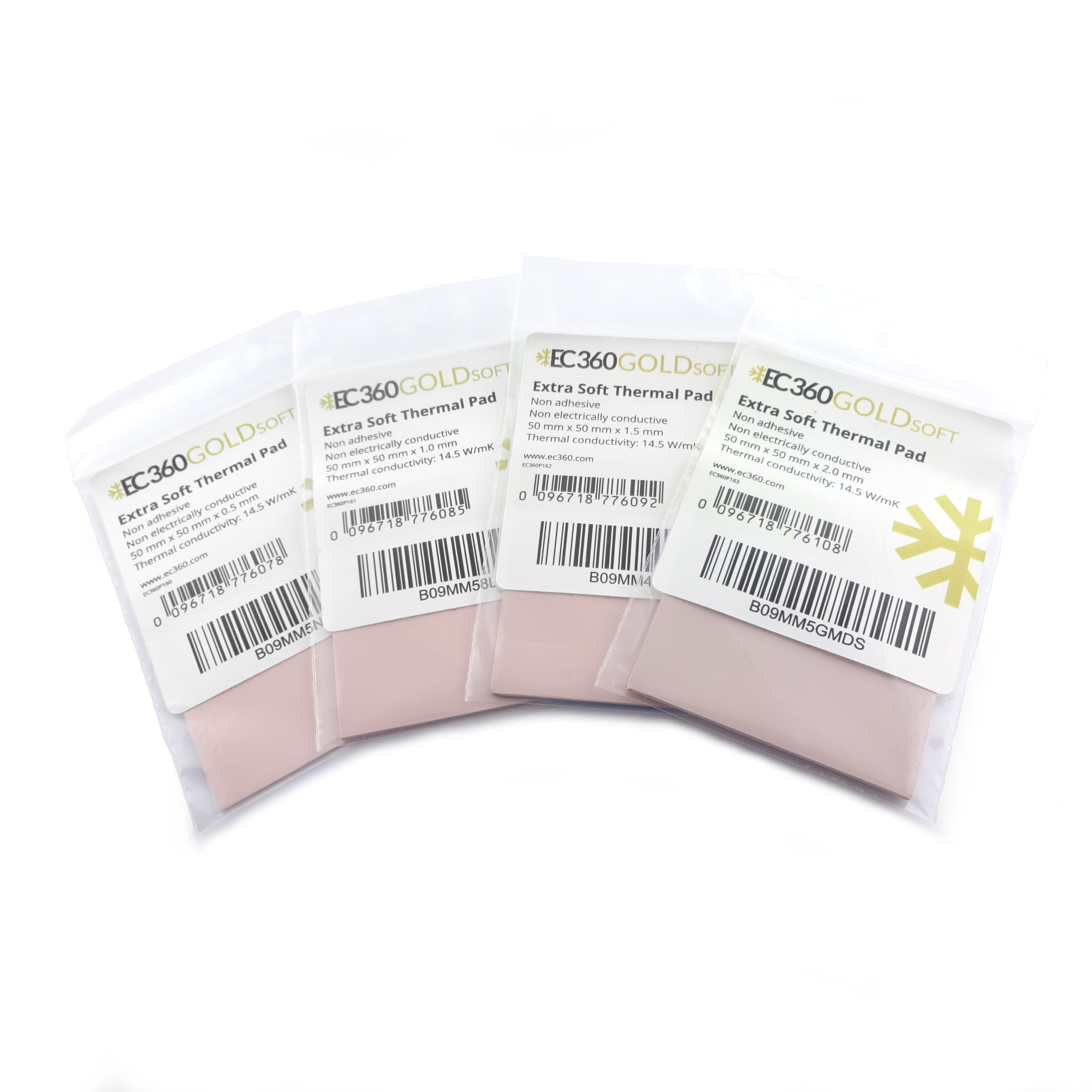

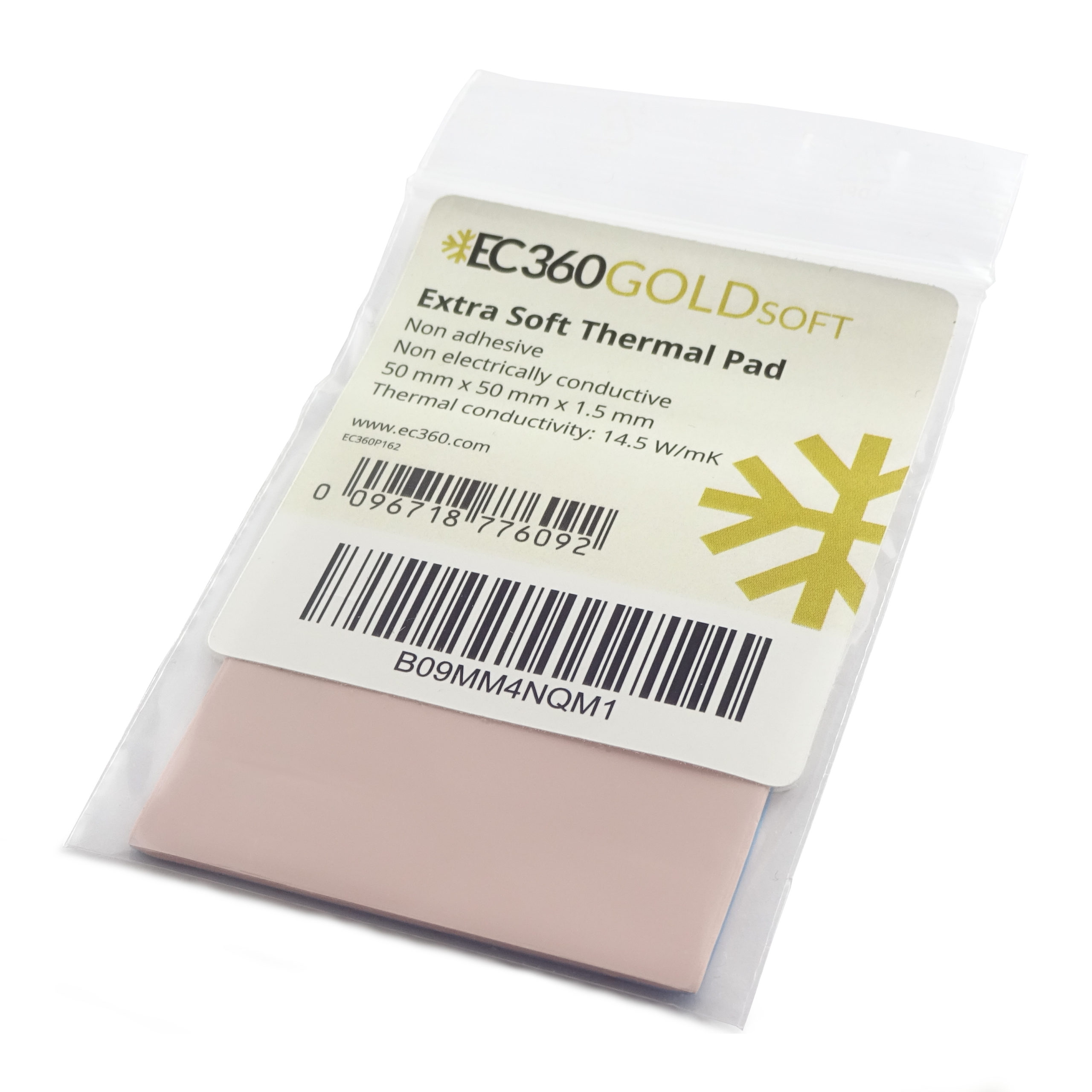

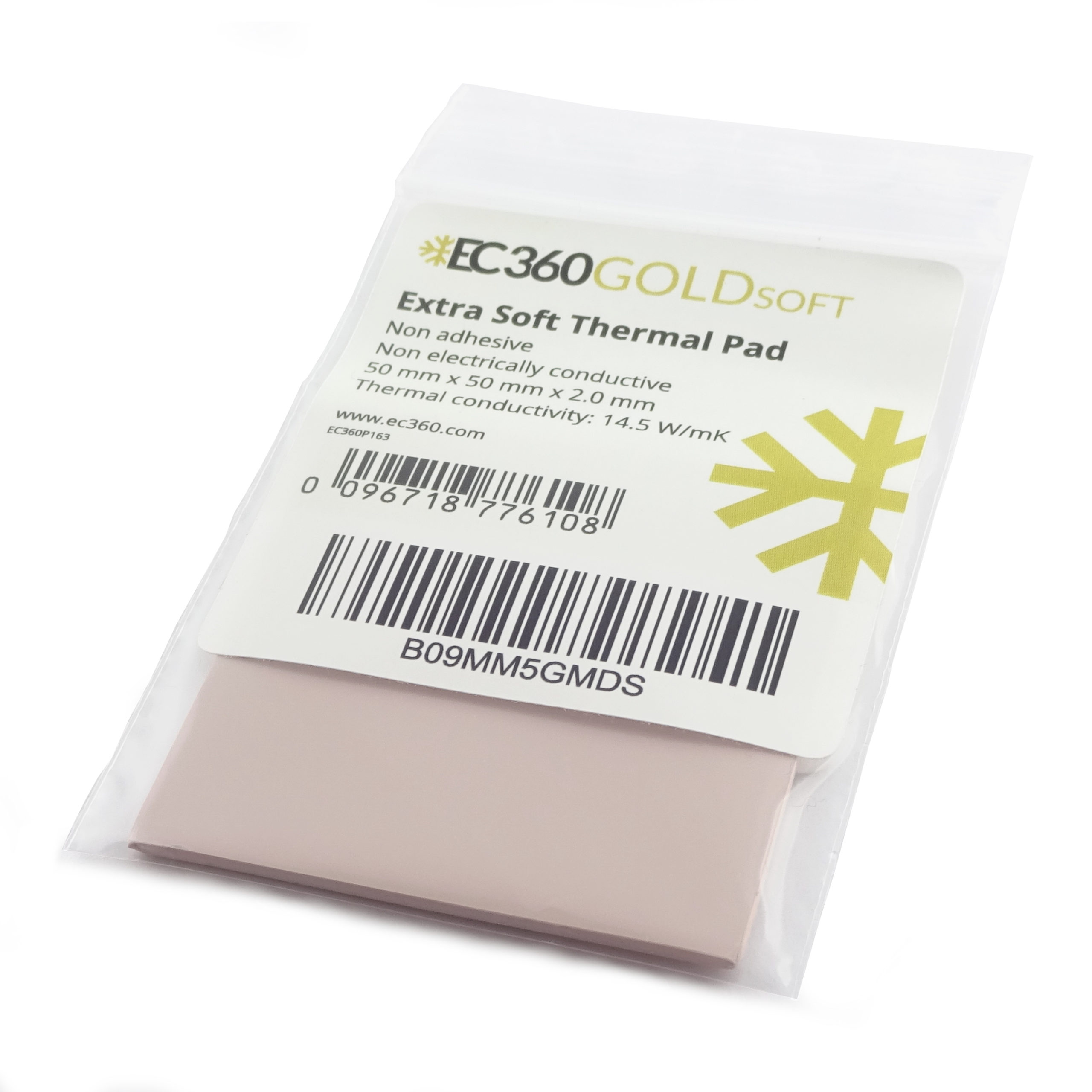

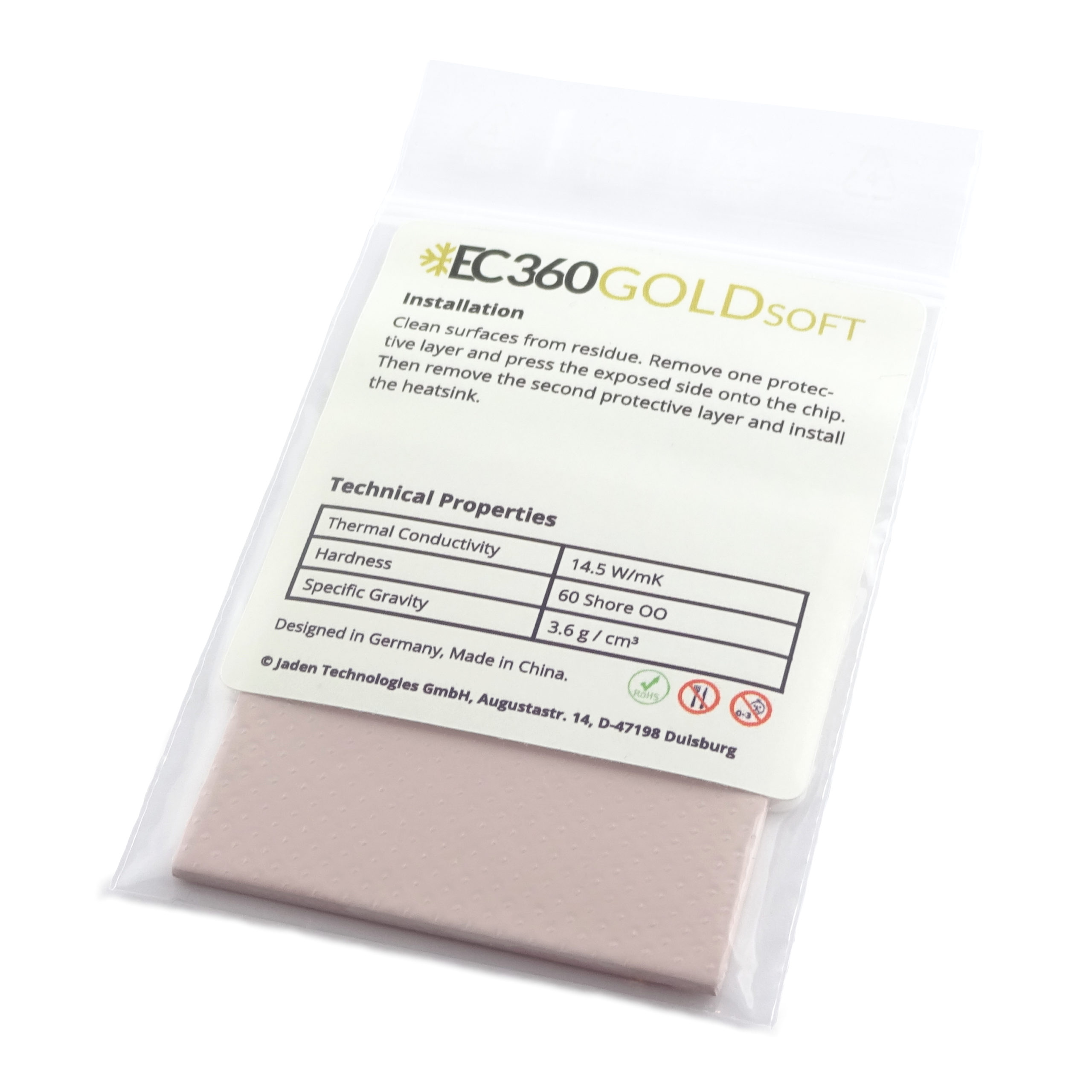

EC360® GOLD SOFT 50x50MM

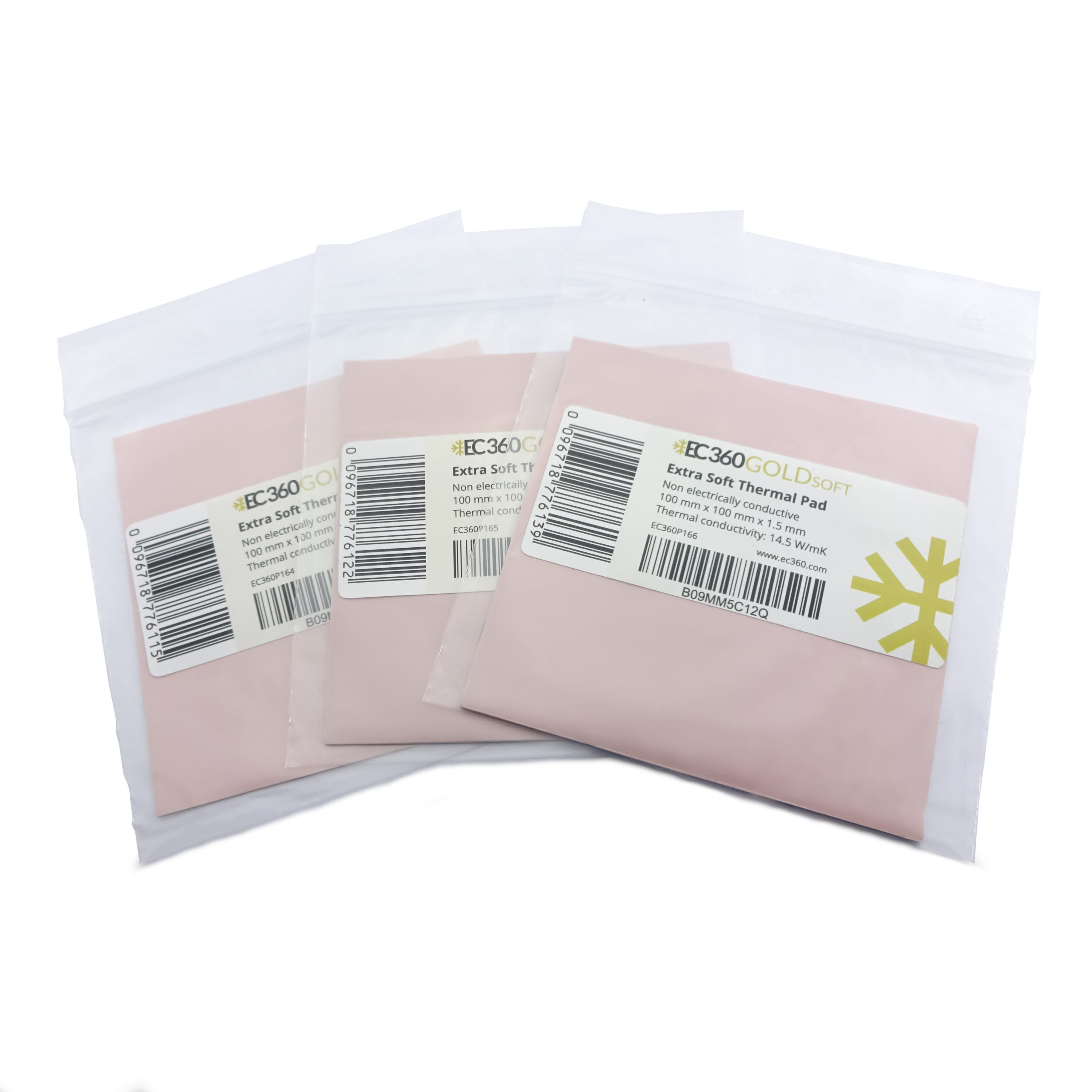

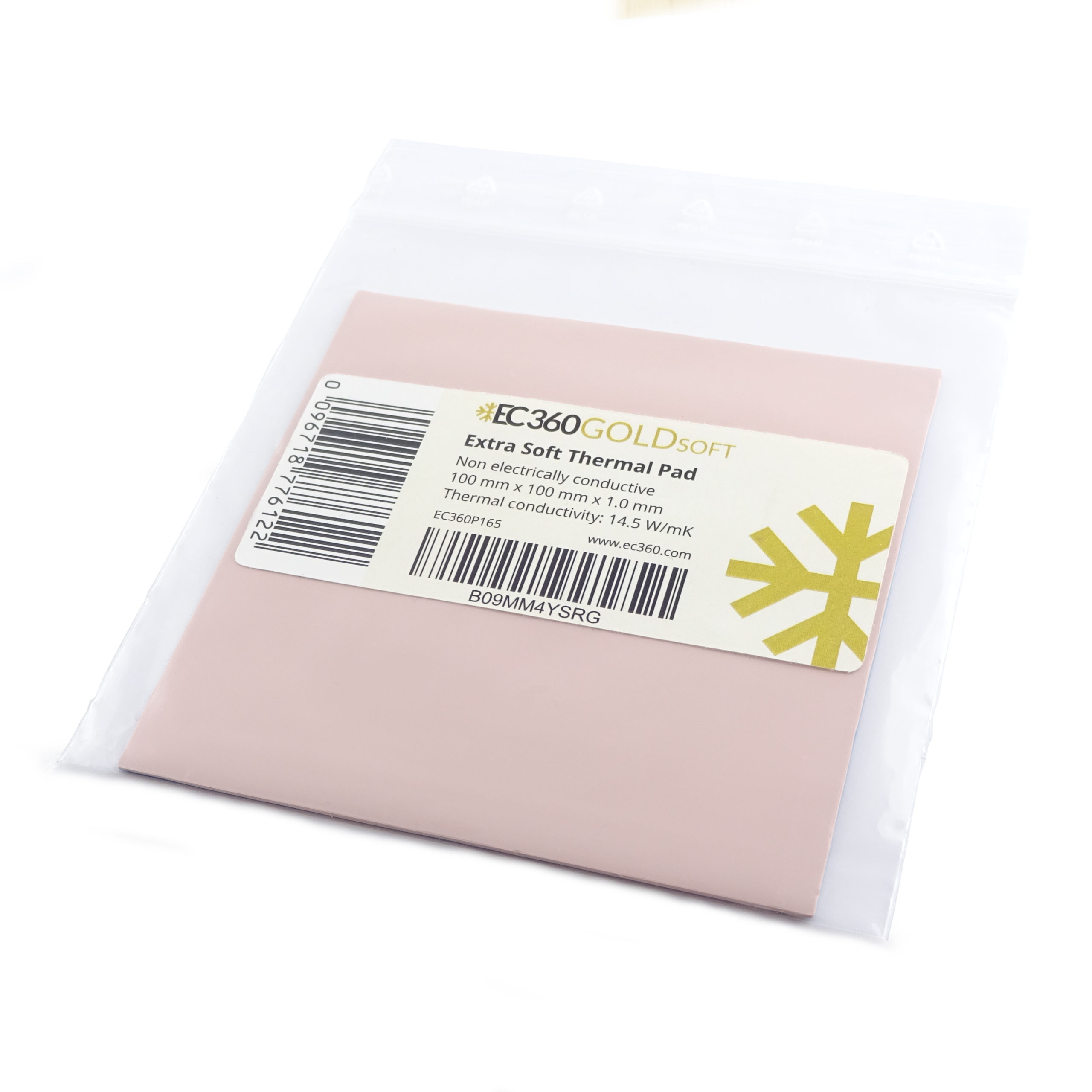

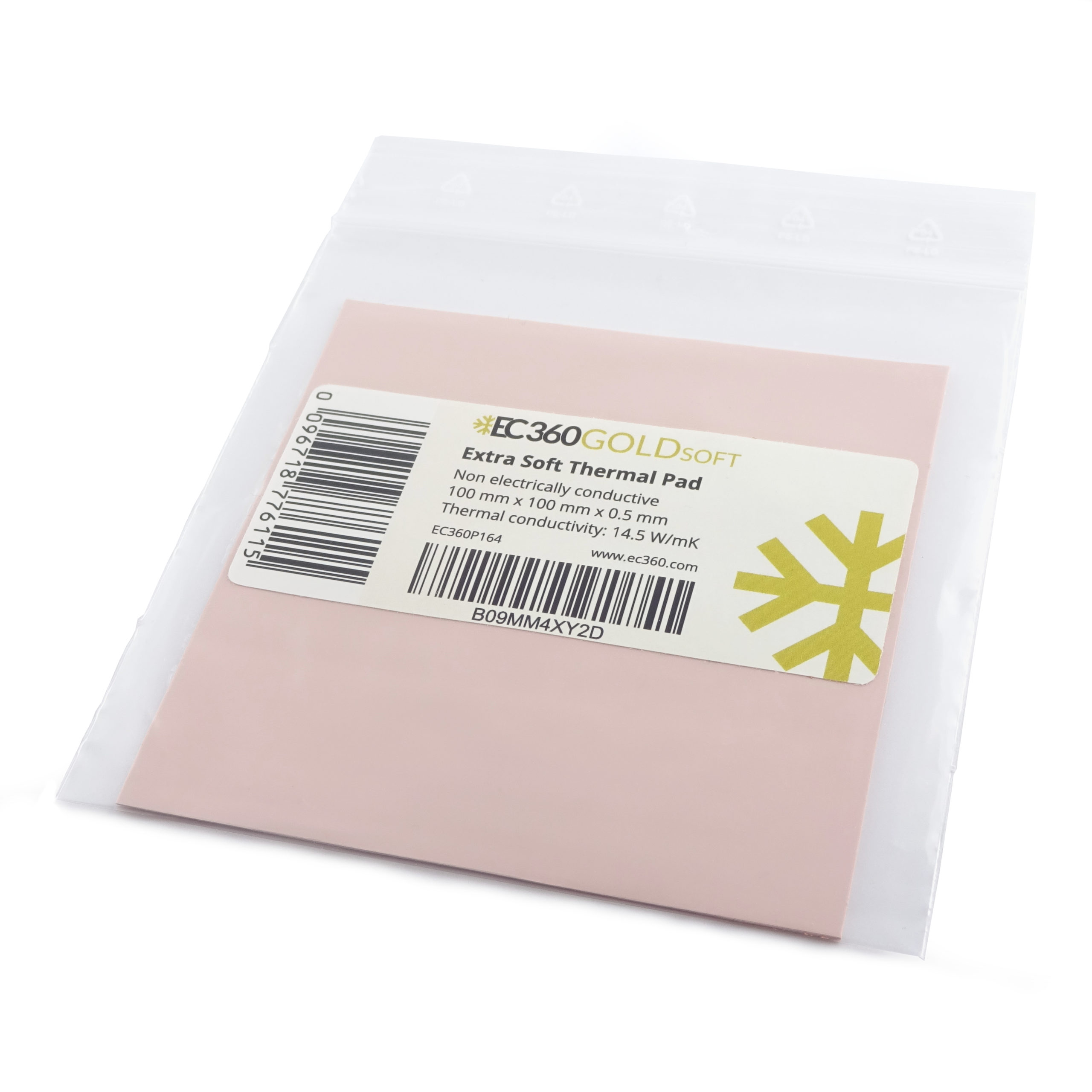

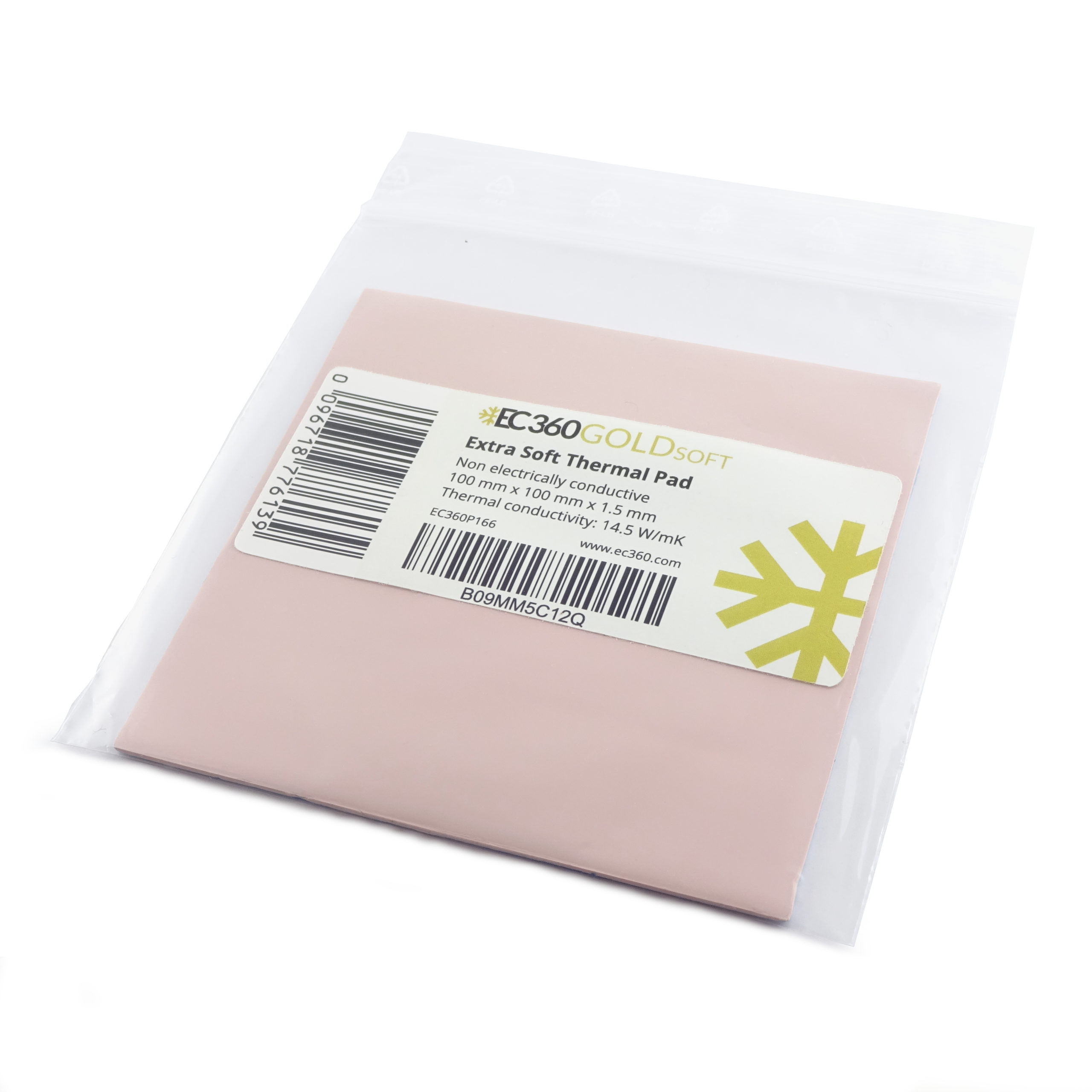

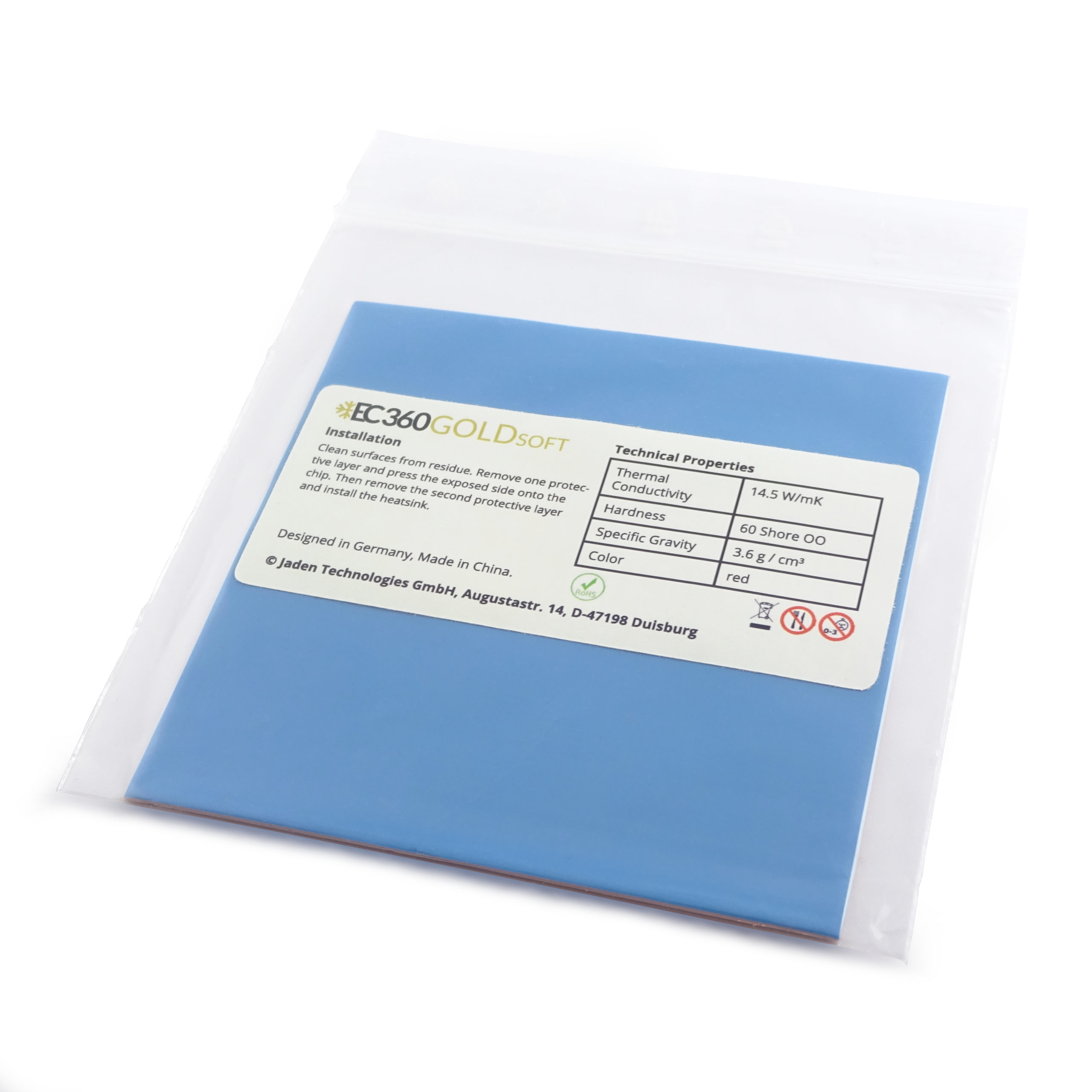

EC360® GOLD SOFT 100x100MM

Datasheets
