Extreme Cool 360 GREEN Thermal Pad

Description

The EC360® GREEN series presents the low-cost variant of our all-round silicone-based thermal pads. The thermal pads feature a balanced thermal conductivity of 2.5 W/mK and are suitable for a variety of applications.

Possible applications include RAM chips, integrated circuits and other electrical components. The pads have a rubber like consistency, which means that they will deform under pressure and spring back into their original shape. The slight adhesion of the pads allows for easy positioning.

It is the perfect solution for heat-transfer in adverse surface conditions when the use of thermal paste is unsuitable.

Handling is particularly safe, as the pads are electrically isolating and there is no risk of short-circuiting. Additionally, they can easily be cut using a scissor, which allows trimming pads to the perfect size for any surface.

Specs

Types and Configurations

ThicknessAvailable sizes
0.5 mm / 0.02 inches50x50 mm, 100x100 mm, 200x200 mm
1.0 mm / 0.04 inches50x50 mm, 100x100 mm, 200x200 mm
1.5 mm / 0.06 inches50x50 mm, 100x100 mm, 200x200 mm
2.0 mm / 0.08 inches50x50 mm, 100x100 mm, 200x200 mm
3.0 mm / 0.12 inches50x50 mm, 100x100 mm, 200x200 mm
4.0 mm / 0.16 inches50x50 mm, 100x100 mm, 200x200 mm
5.0 mm / 0.20 inches50x50 mm, 100x100 mm, 200x200 mm

Technical Properties

PropertiesUnitValueTest method
Color-greenvisual
Thermal ConductivityW/mk2,5ASTM D 5470
Specific Gravityg / cm^31,6ASTM D 792
HardnessShore C40ASTM D 2240
Tensile Strengthpsi5,88ASTM D 412
Elongation%12ASTM D 412
Volume ImpedanceOhm-cm1,0 x 10¹¹ASTM D 257
Breakdown VoltagekV/mm4,0ASTM D 149
Usable Temperatures °C-40 - 240EN 344
Flame Rating-VOUL 94

Gallery

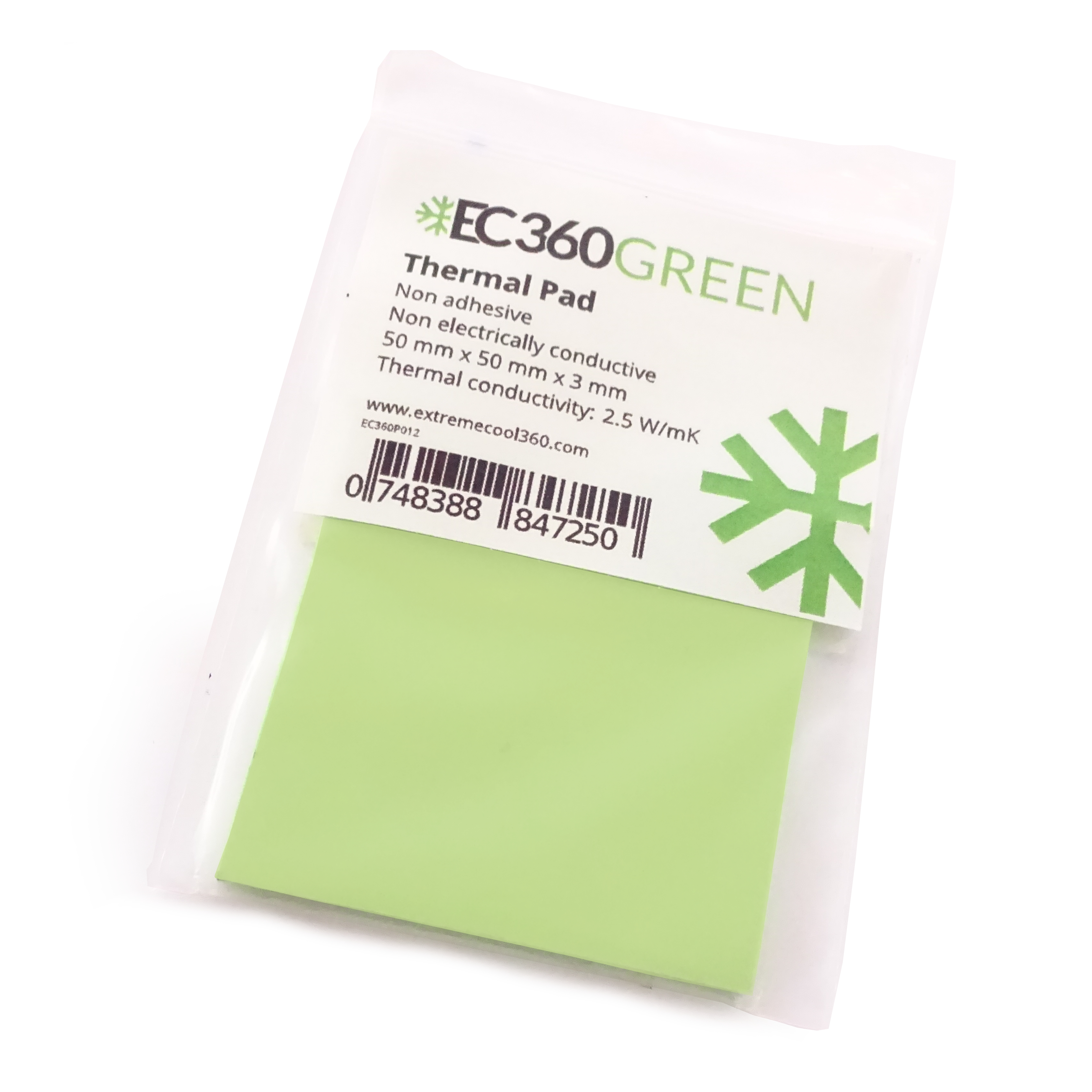

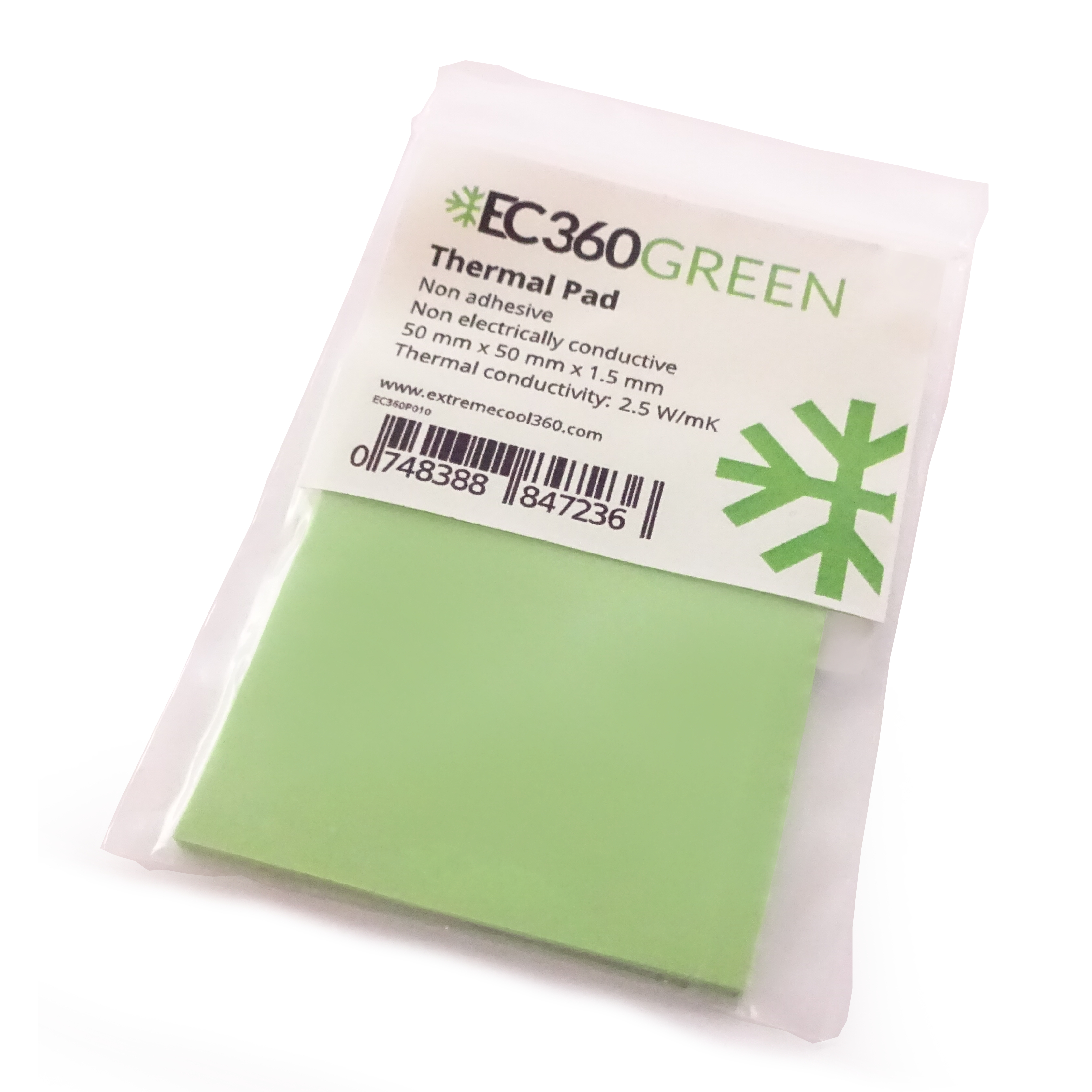

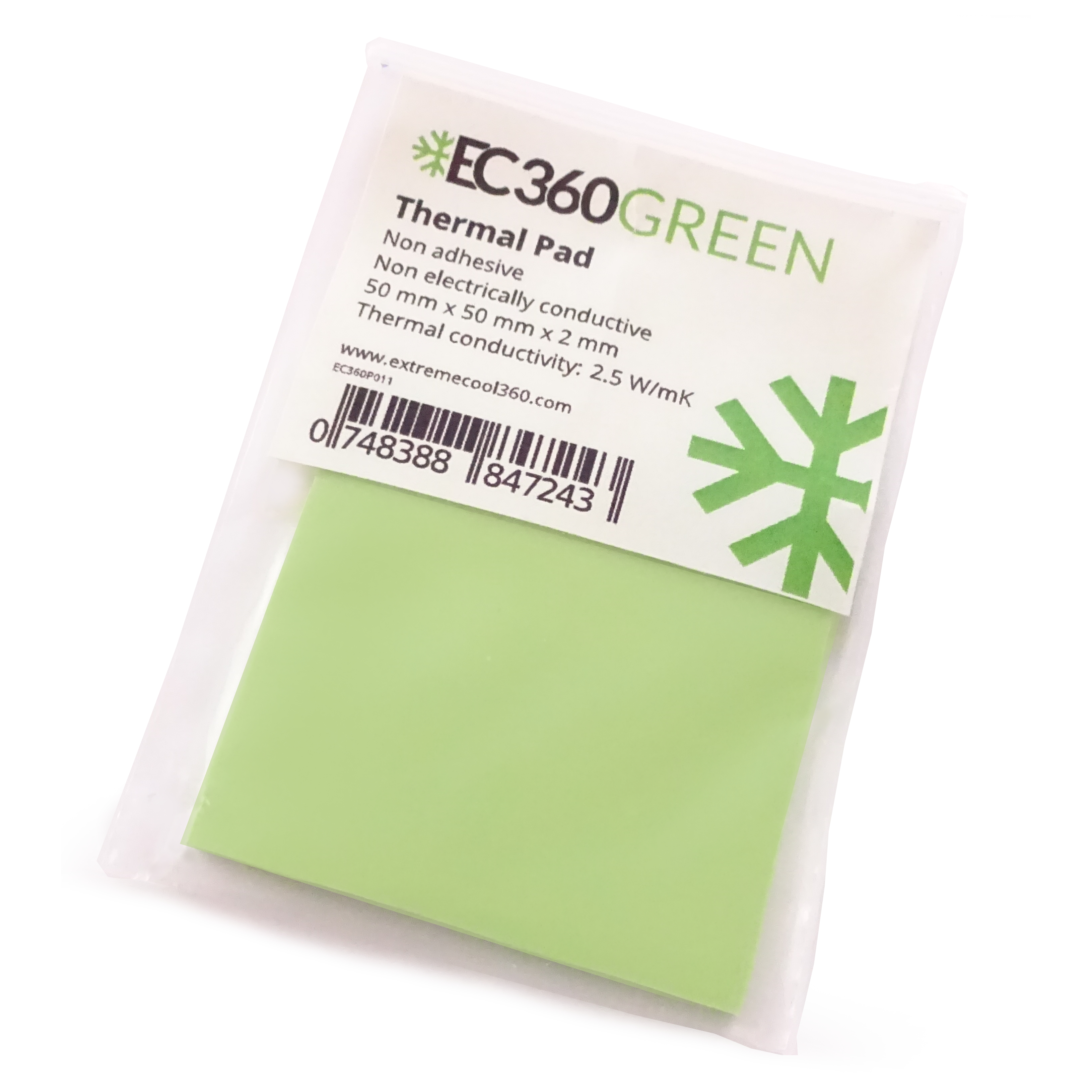

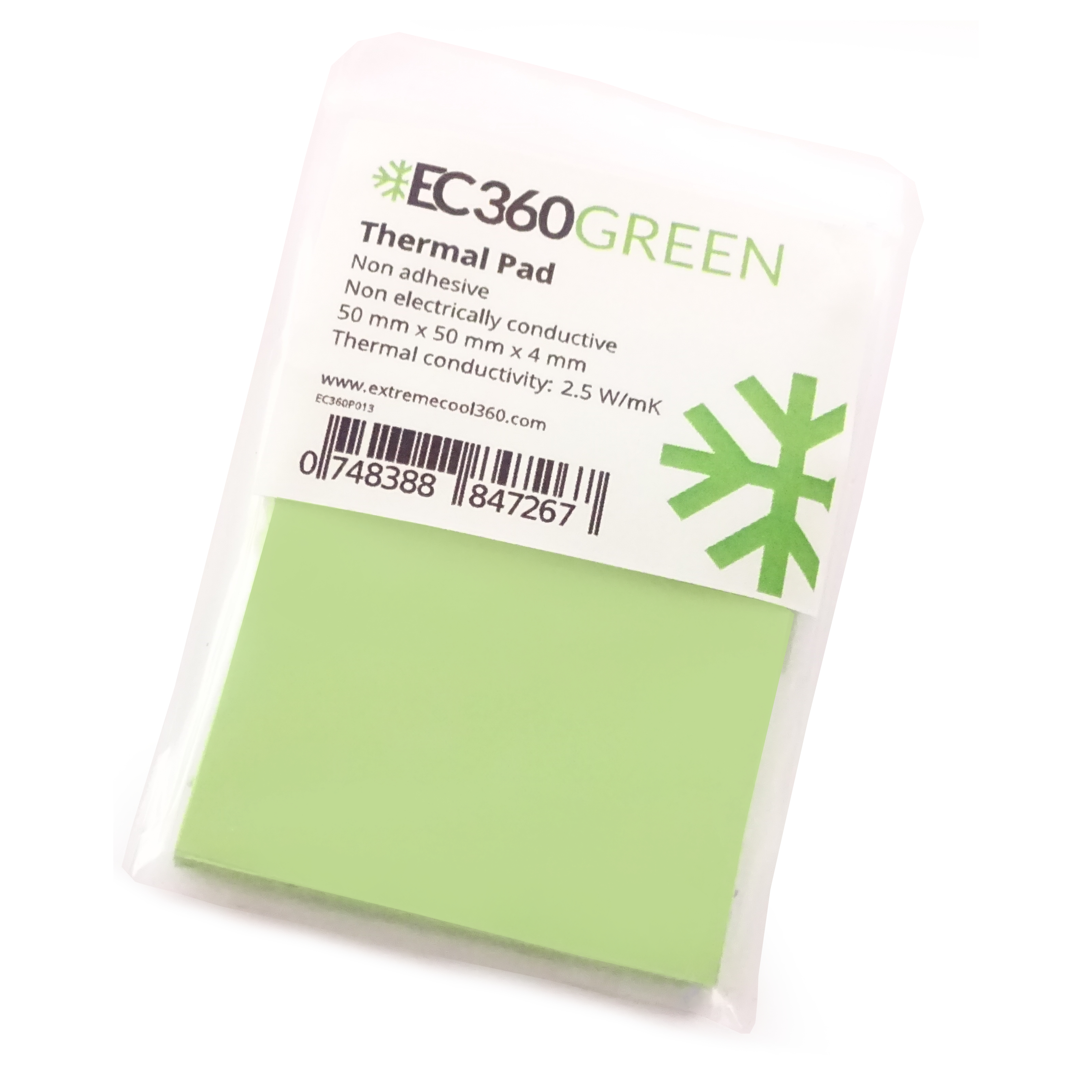

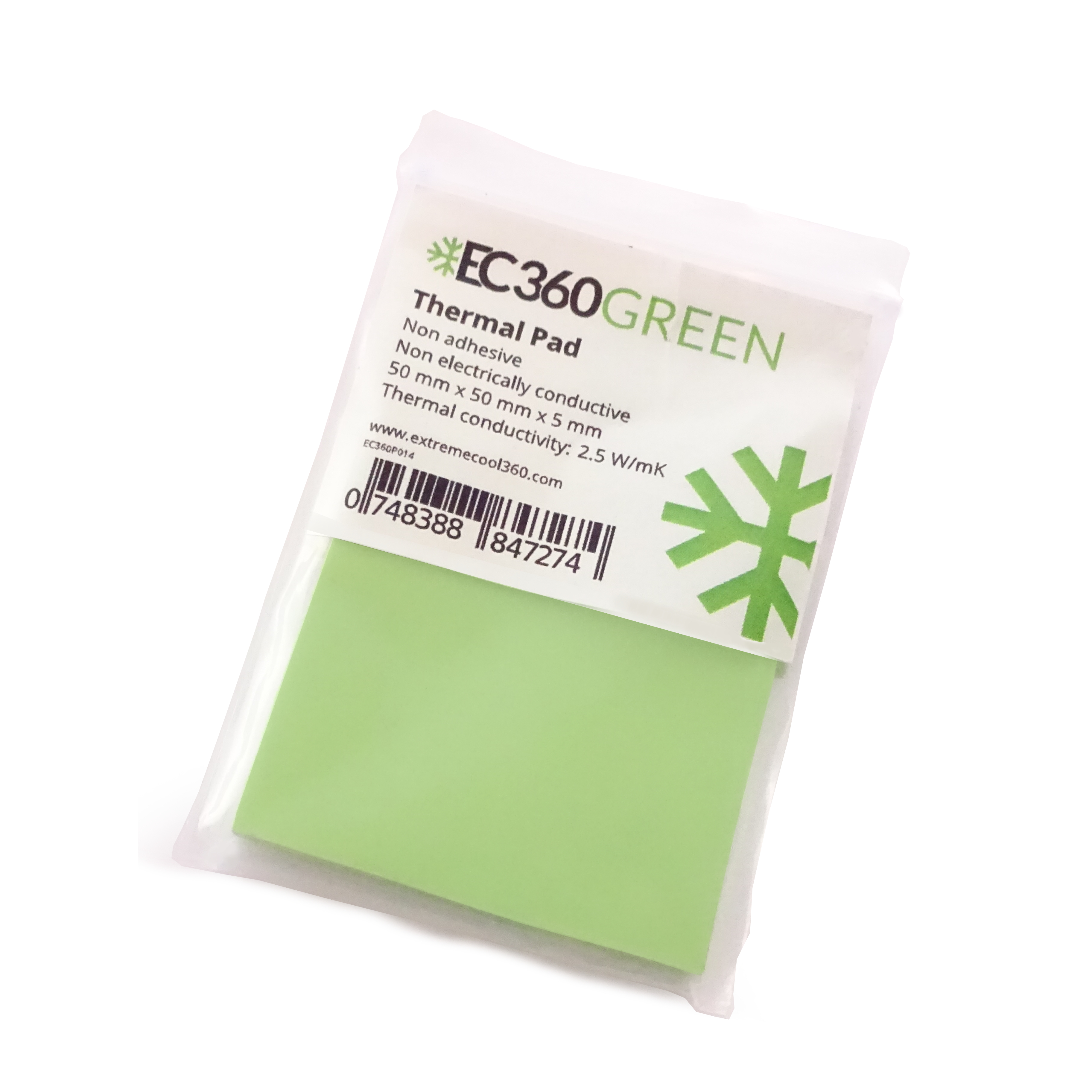

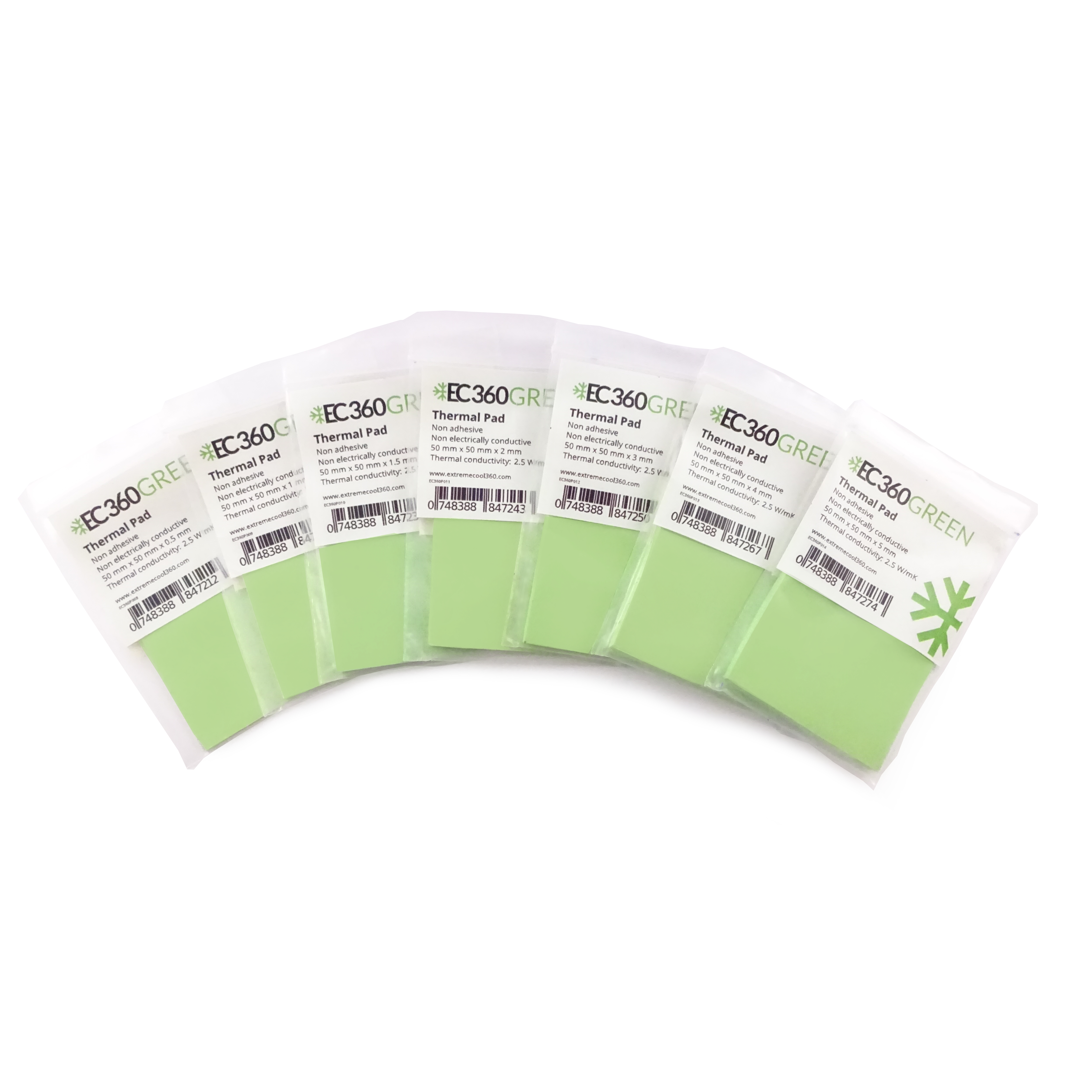

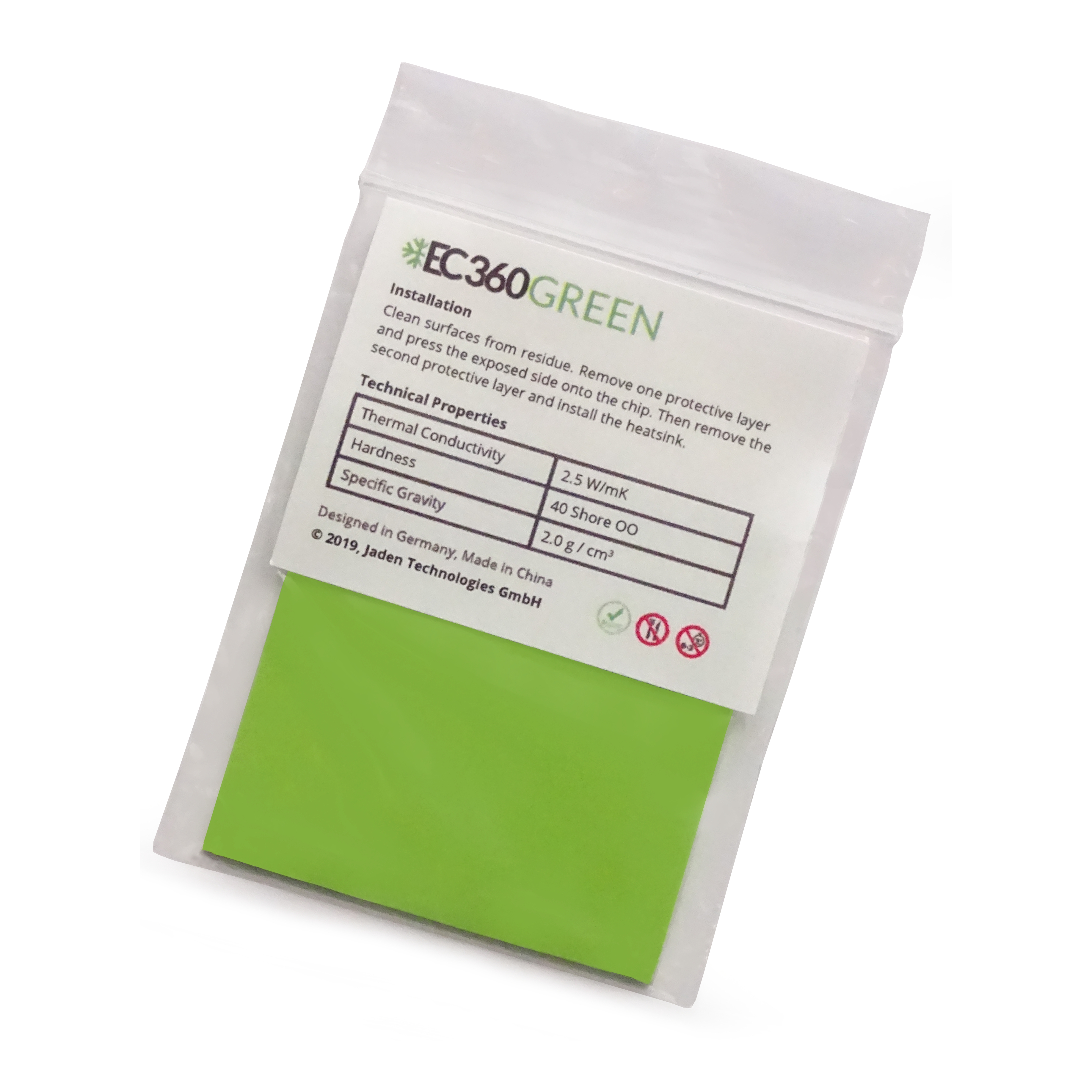

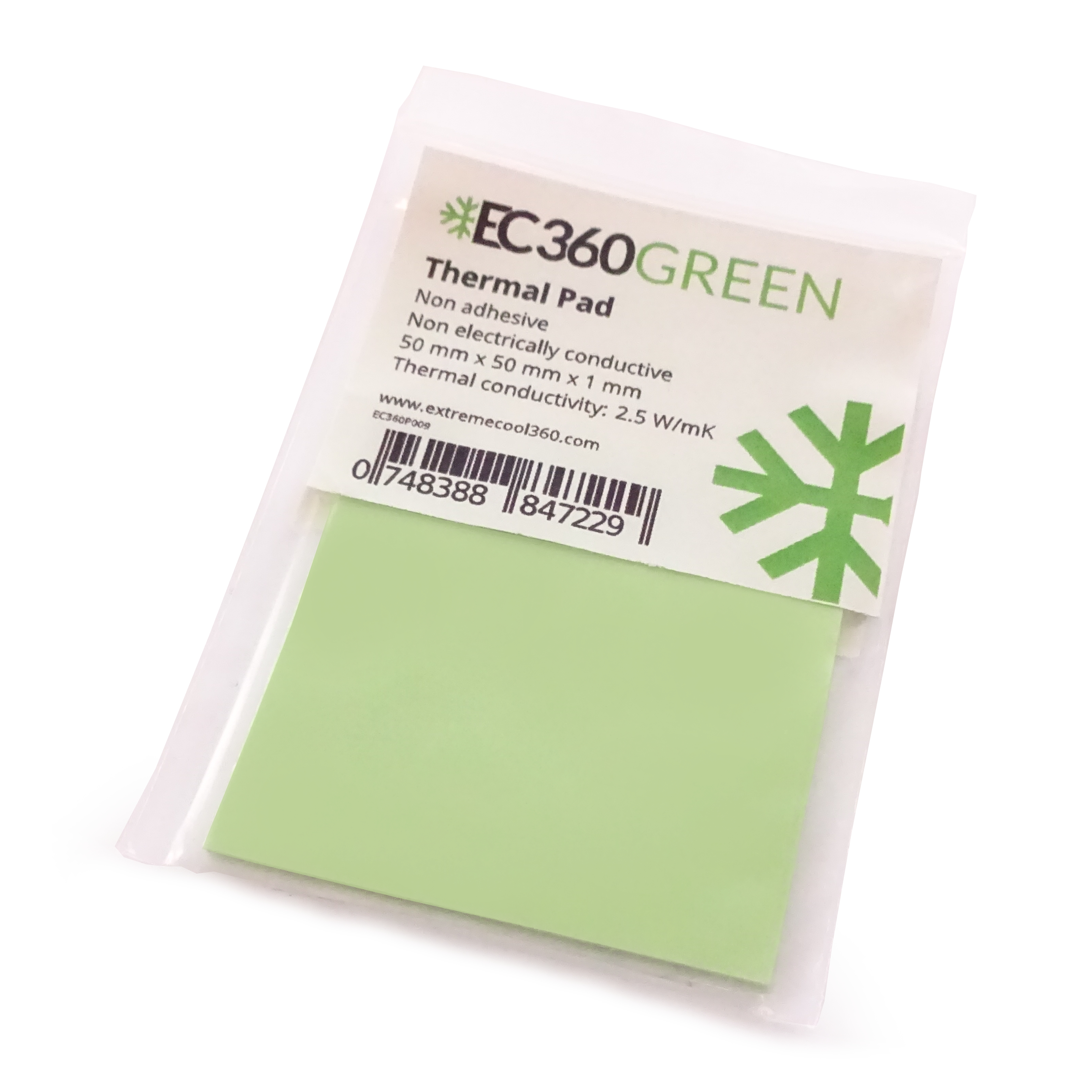

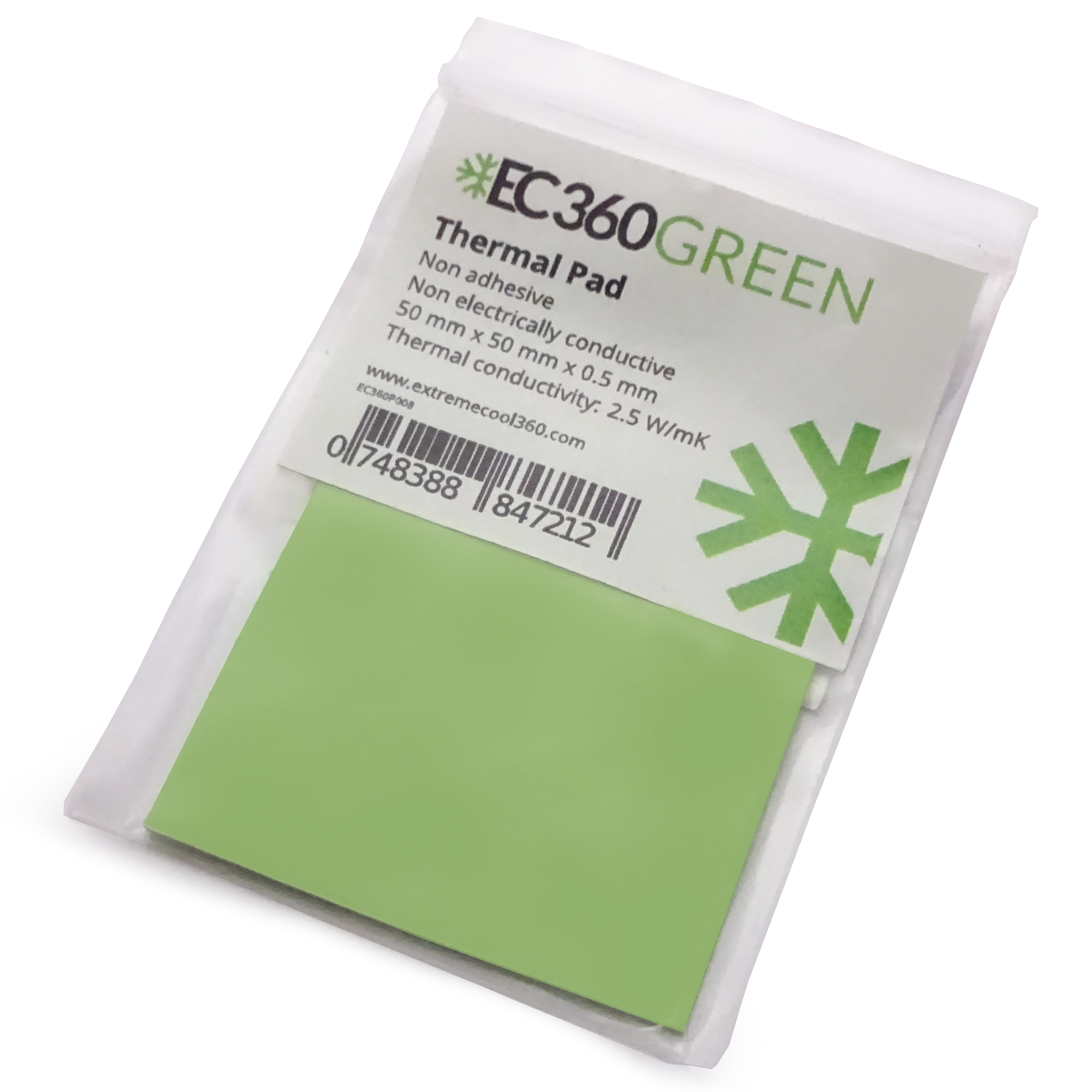

EC360® GREEN 50x50MM

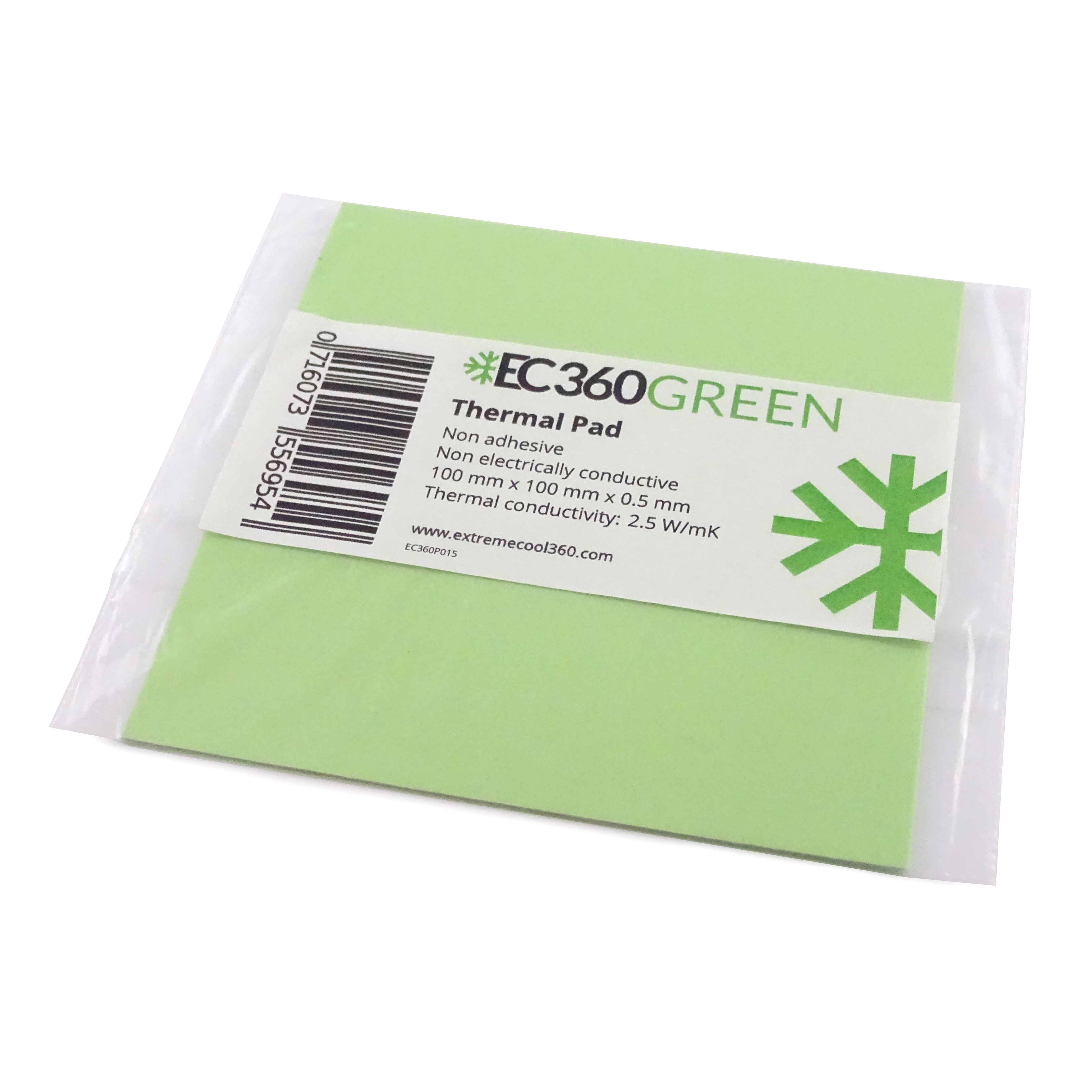

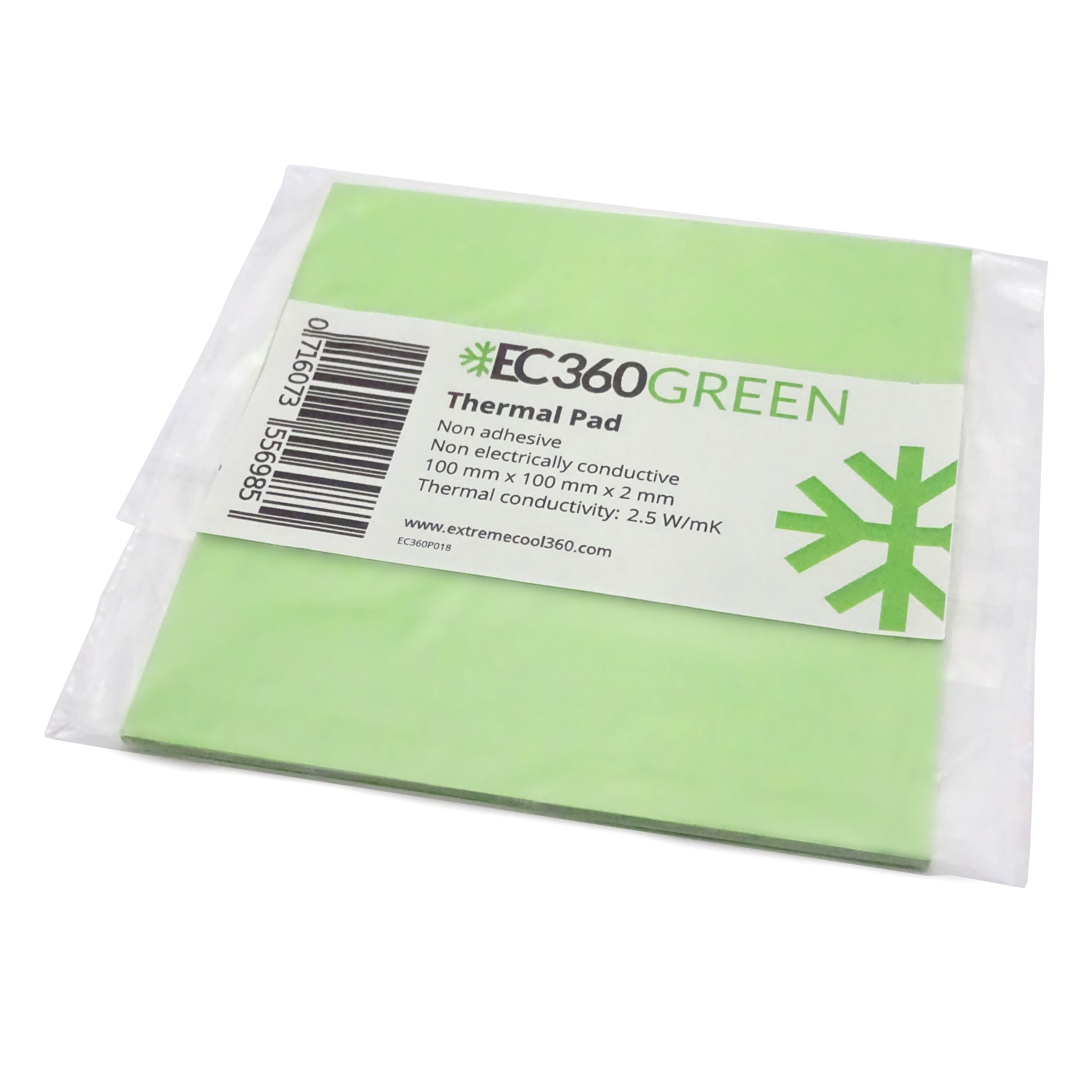

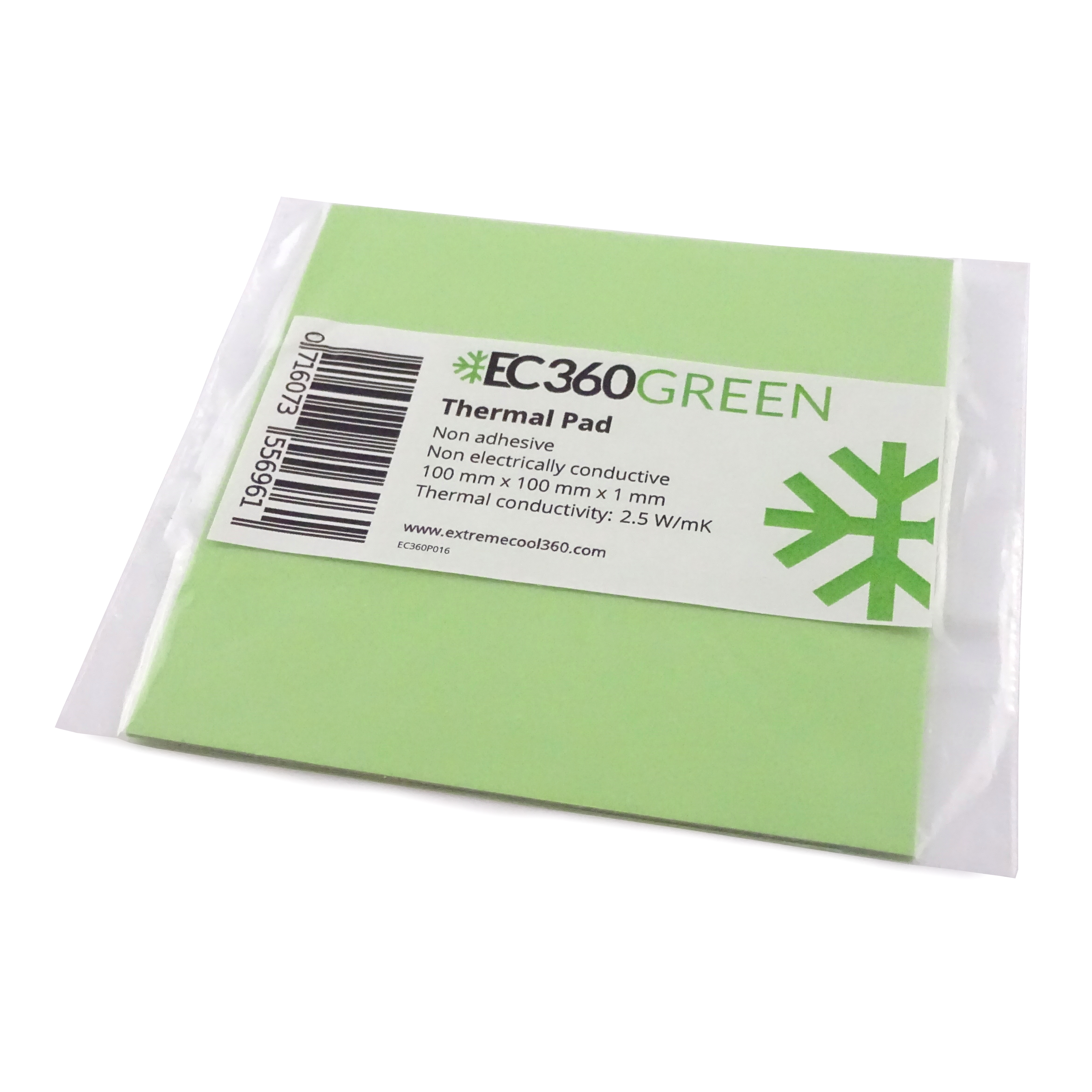

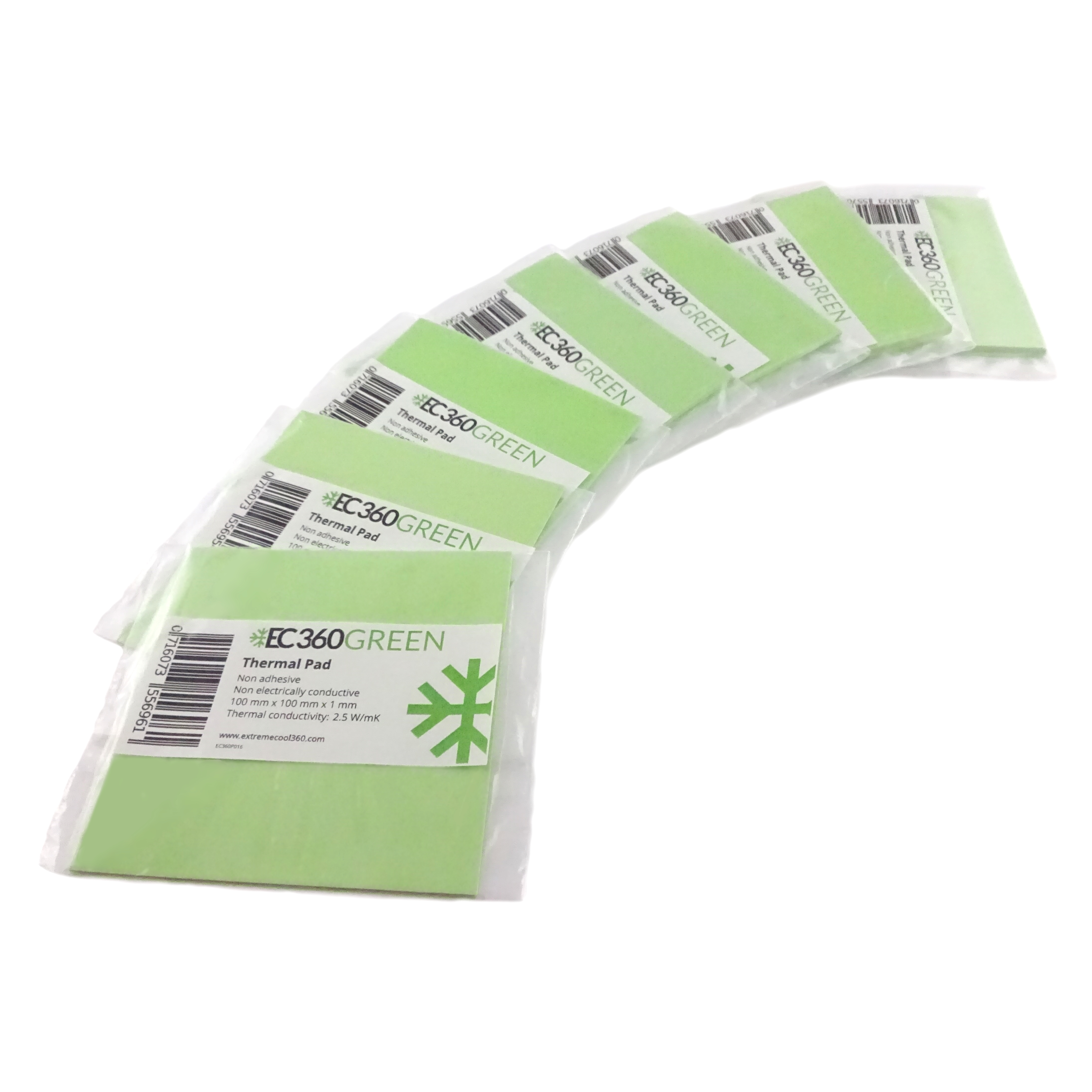

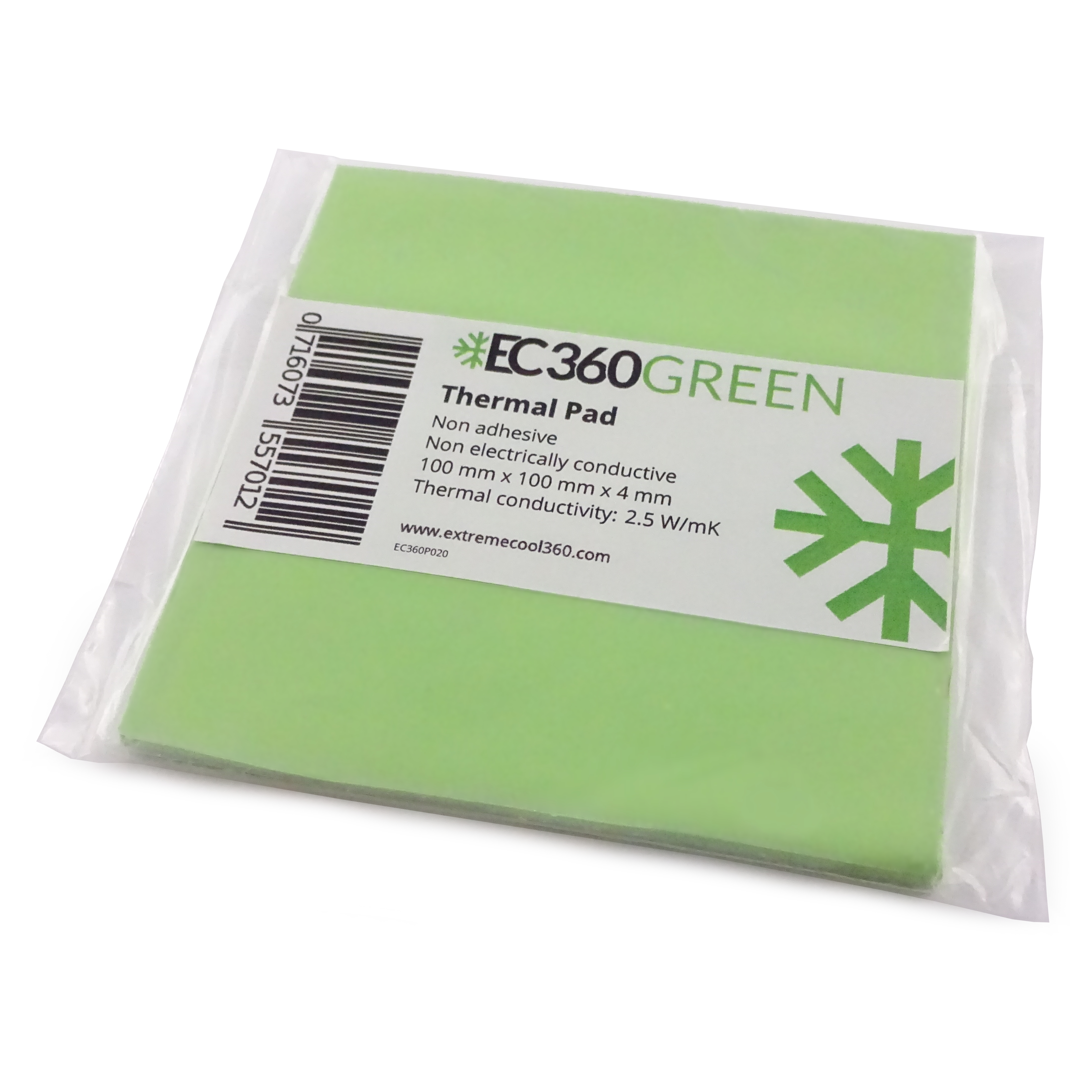

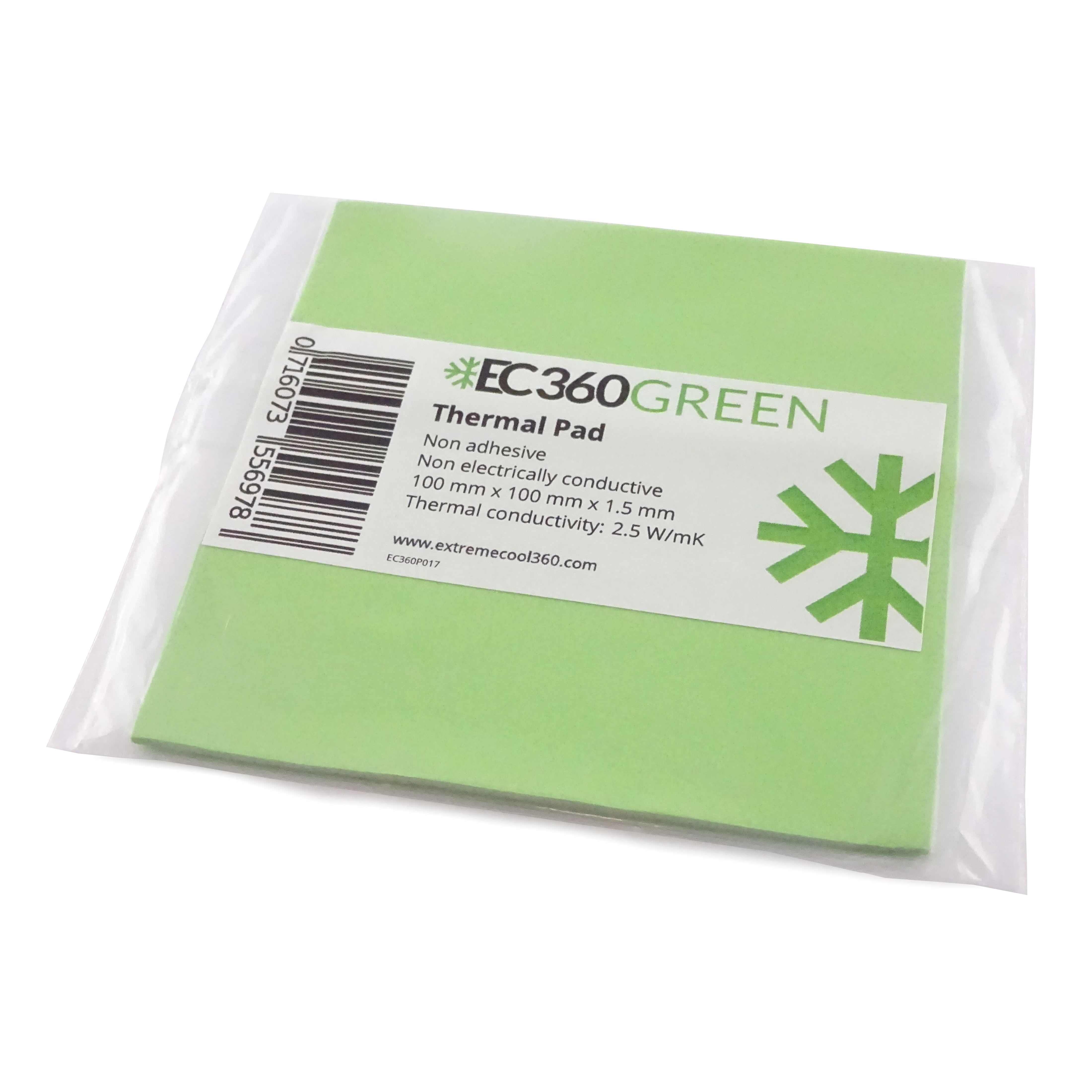

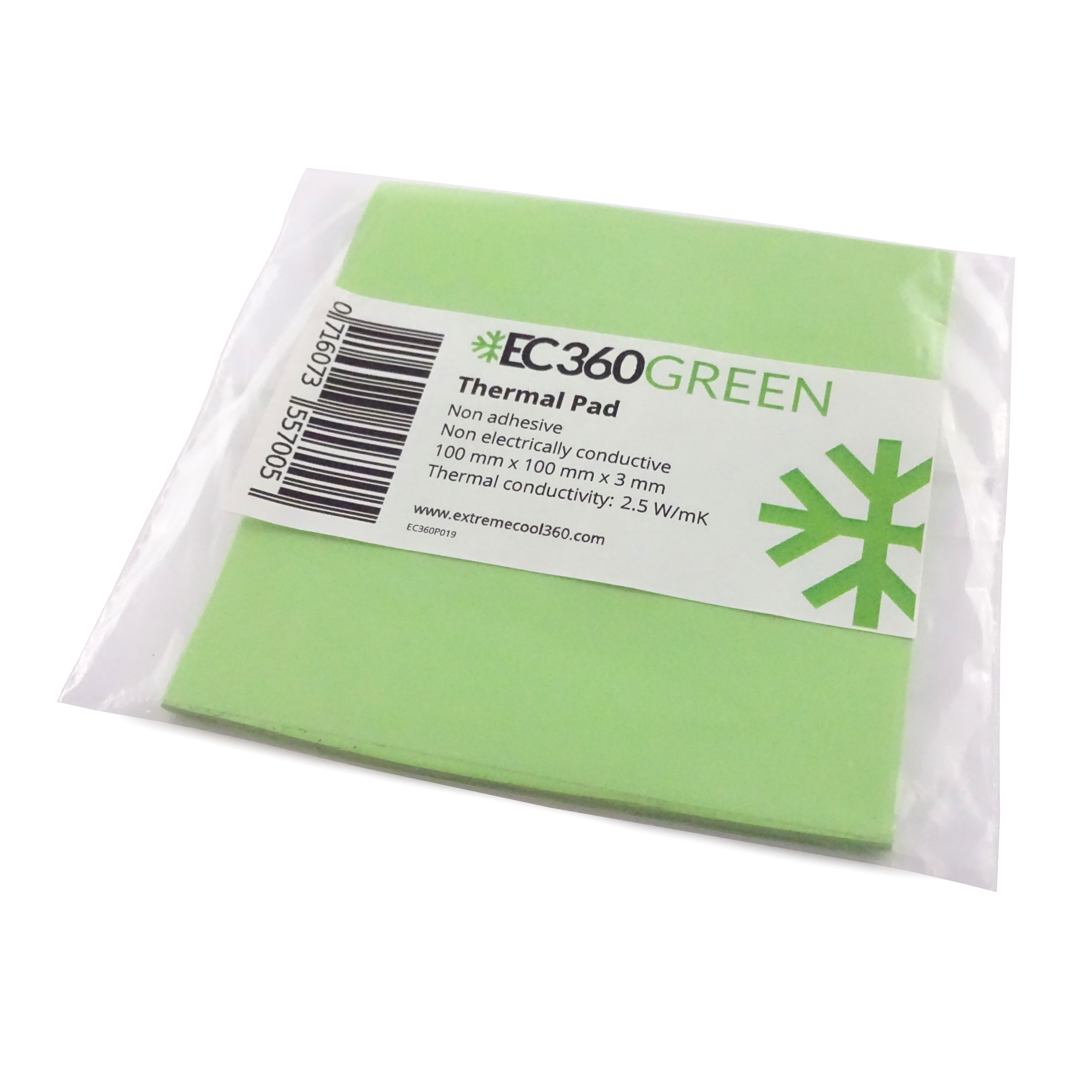

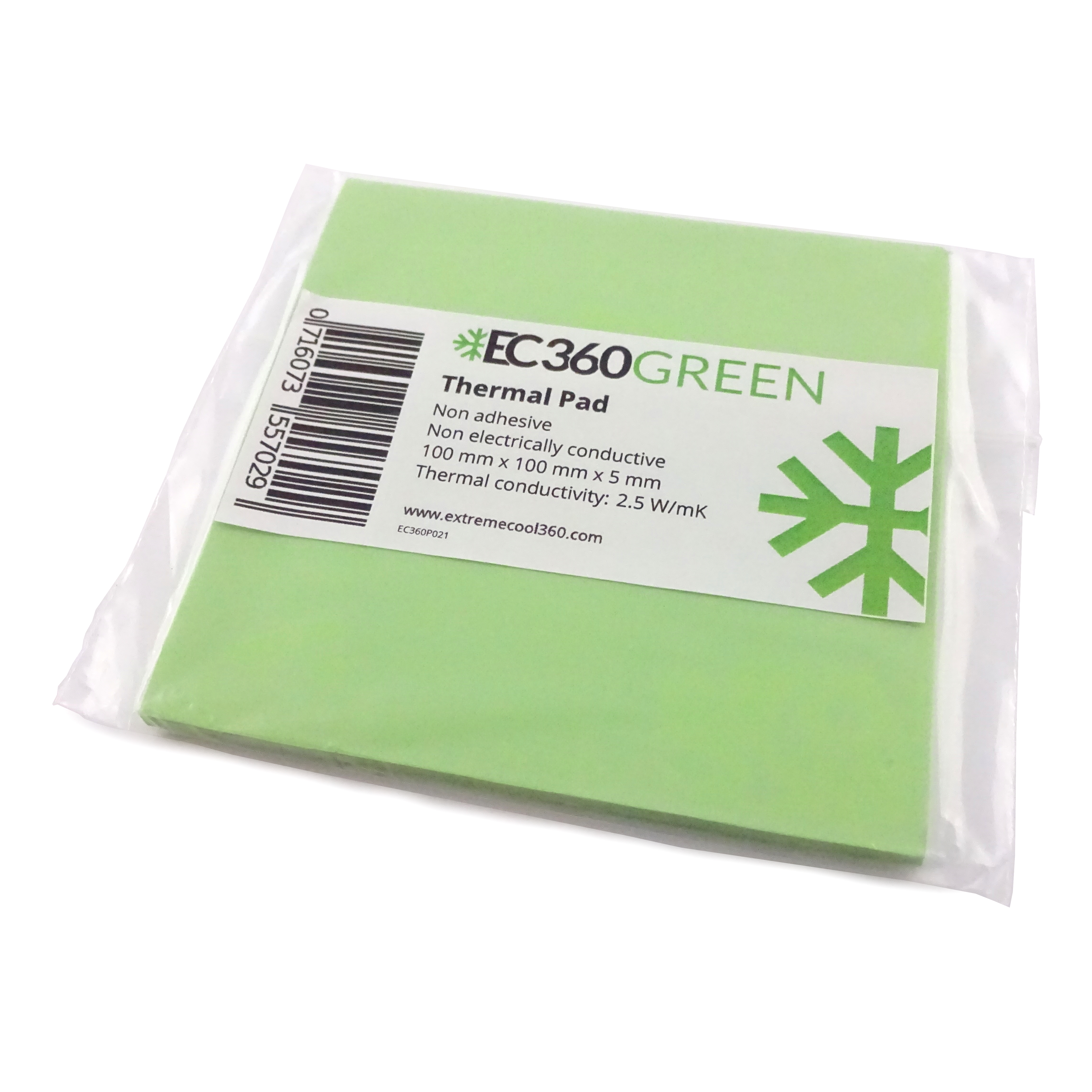

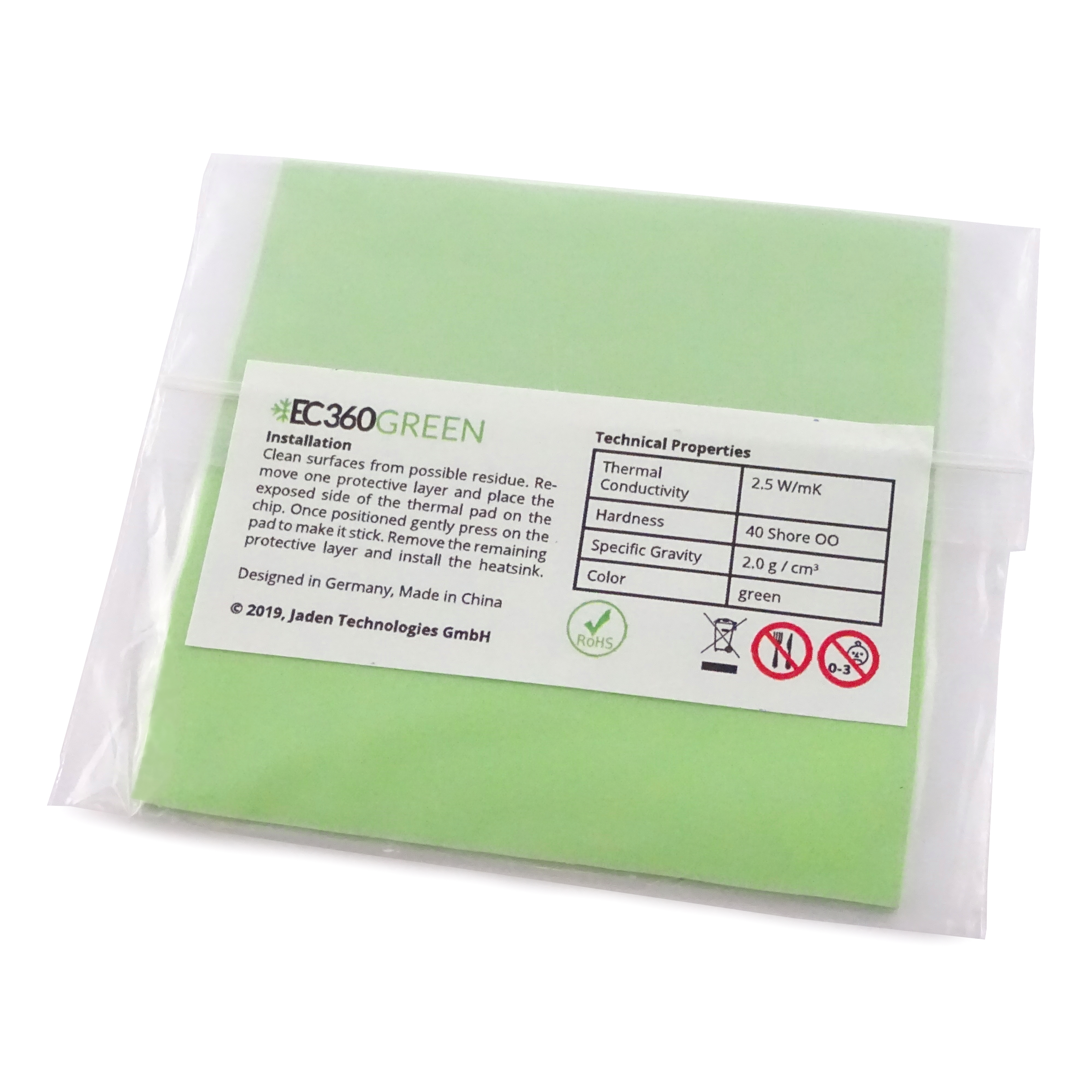

EC360® GREEN 100x100MM

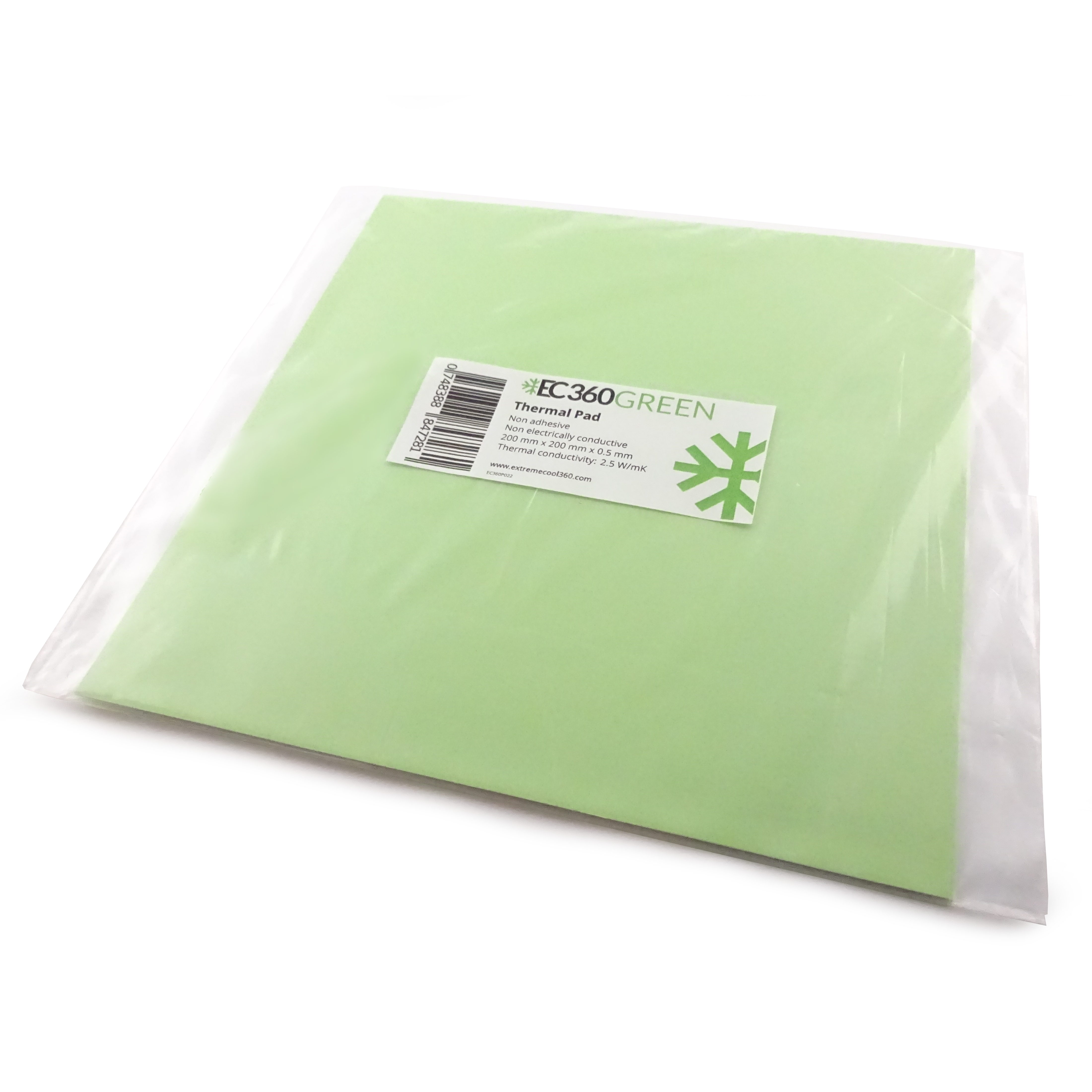

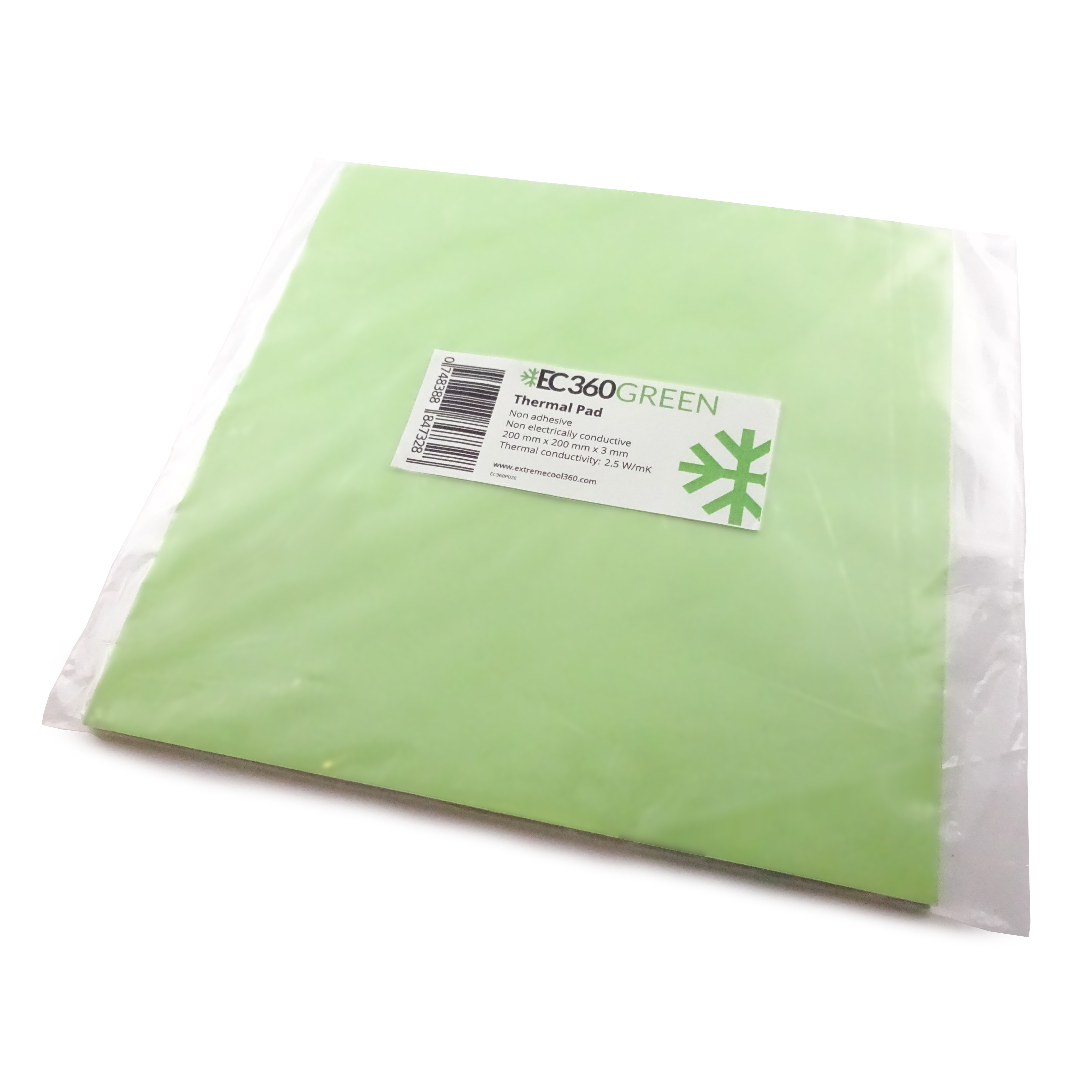

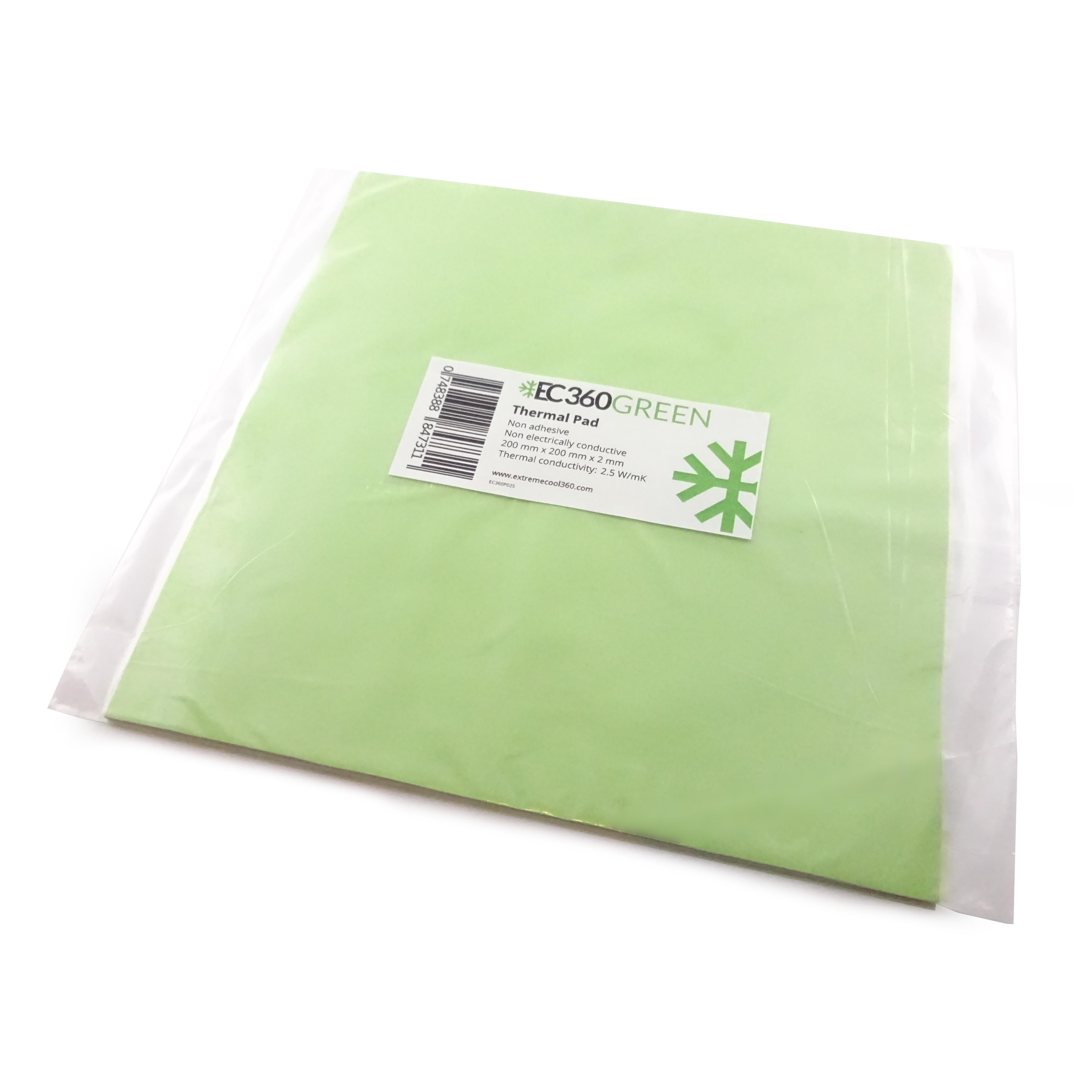

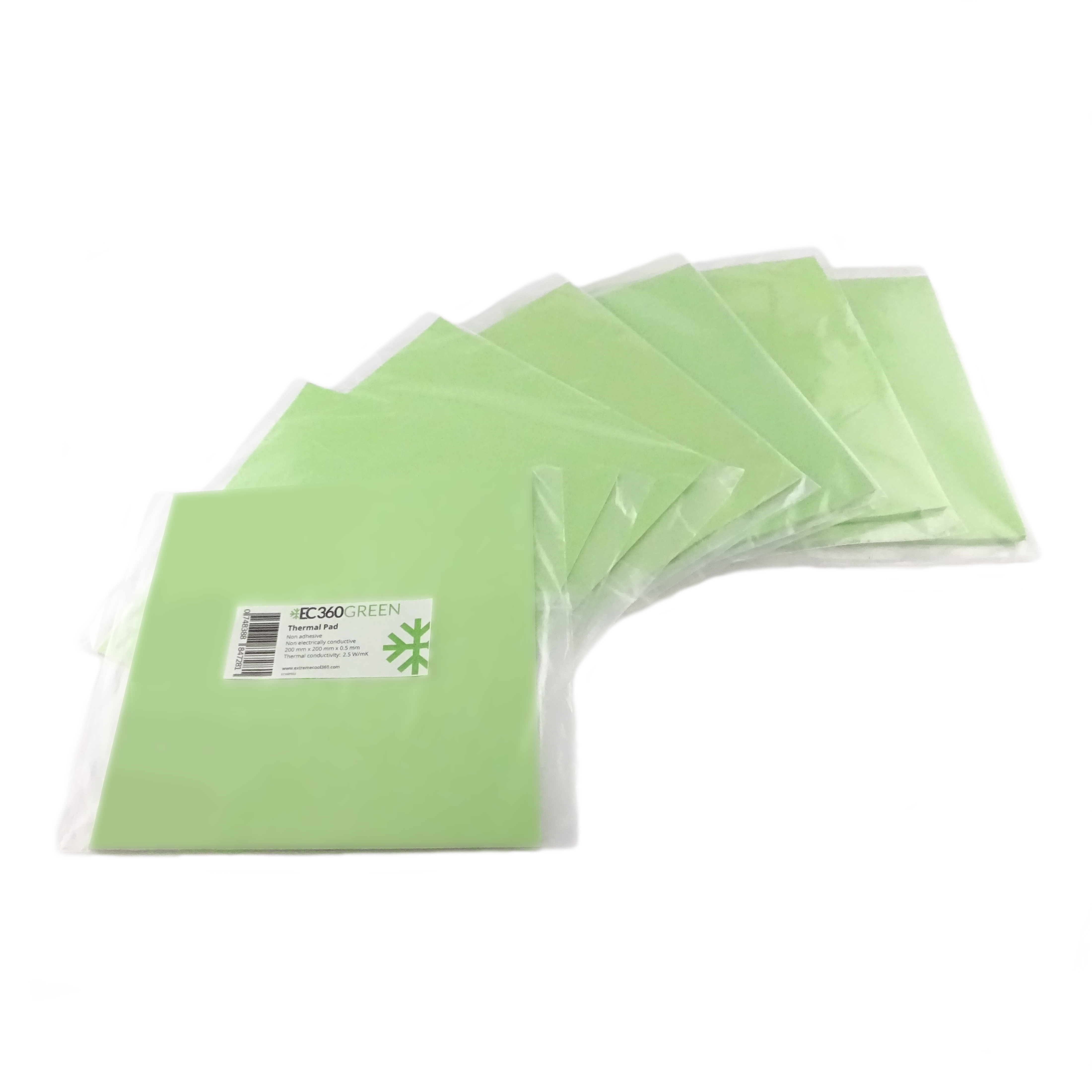

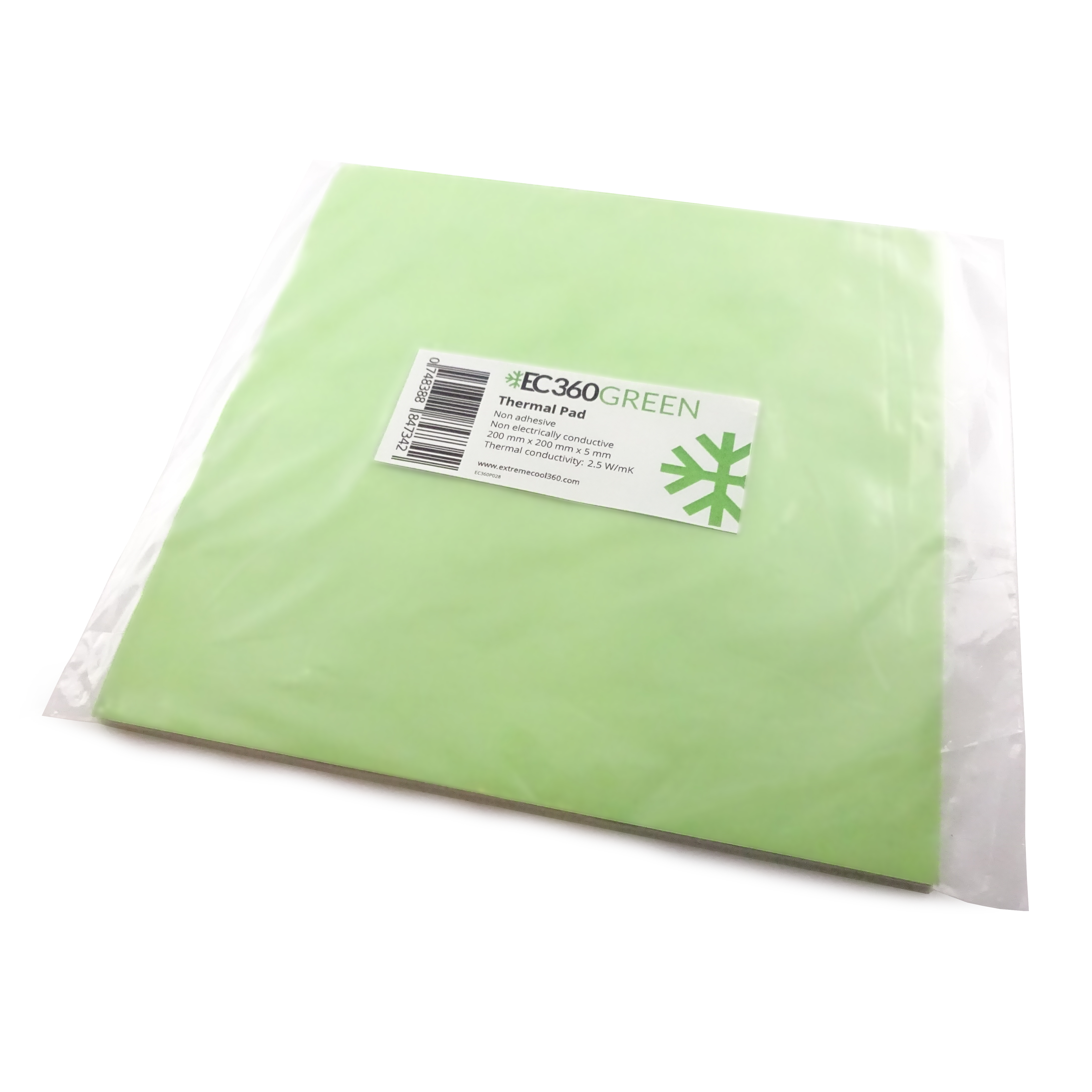

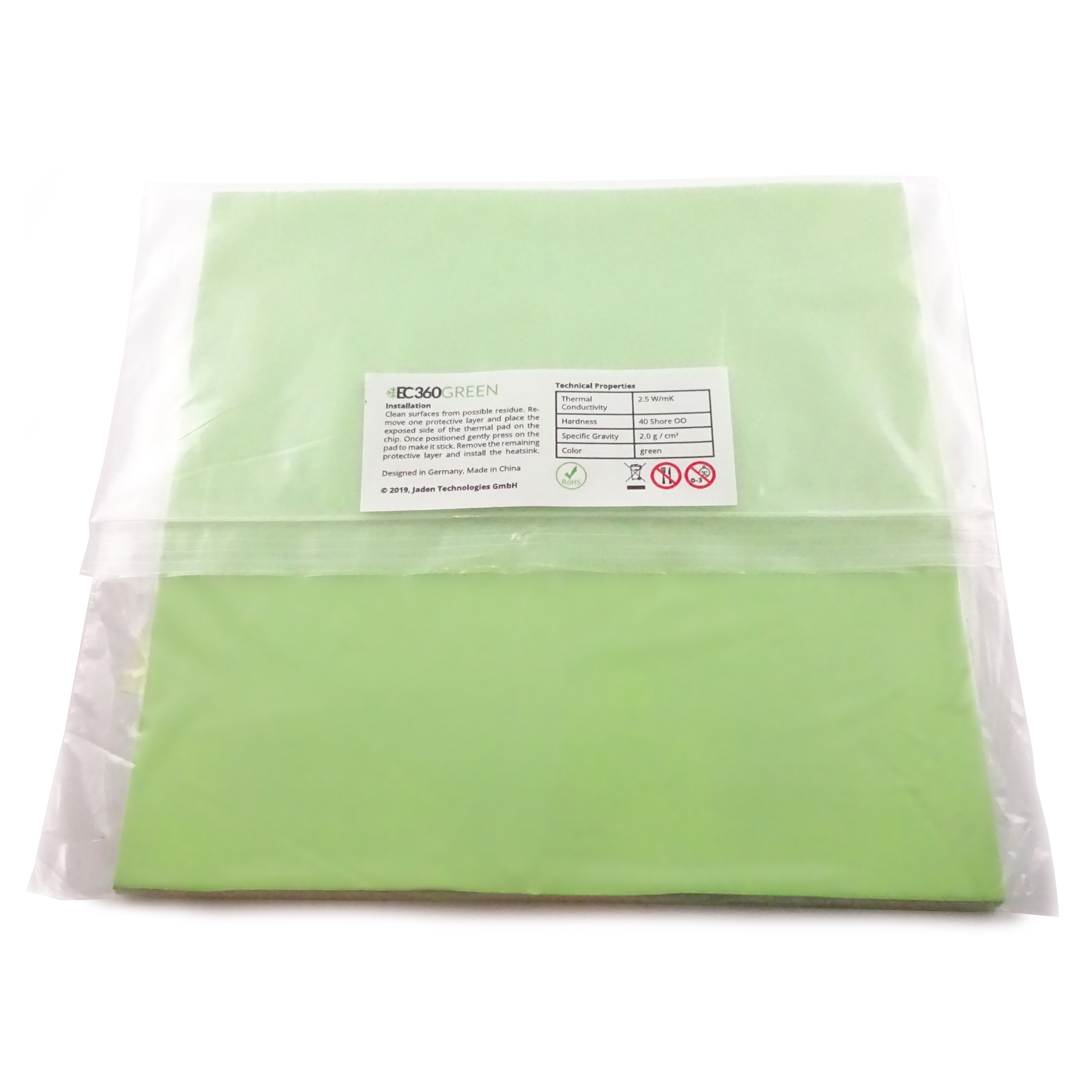

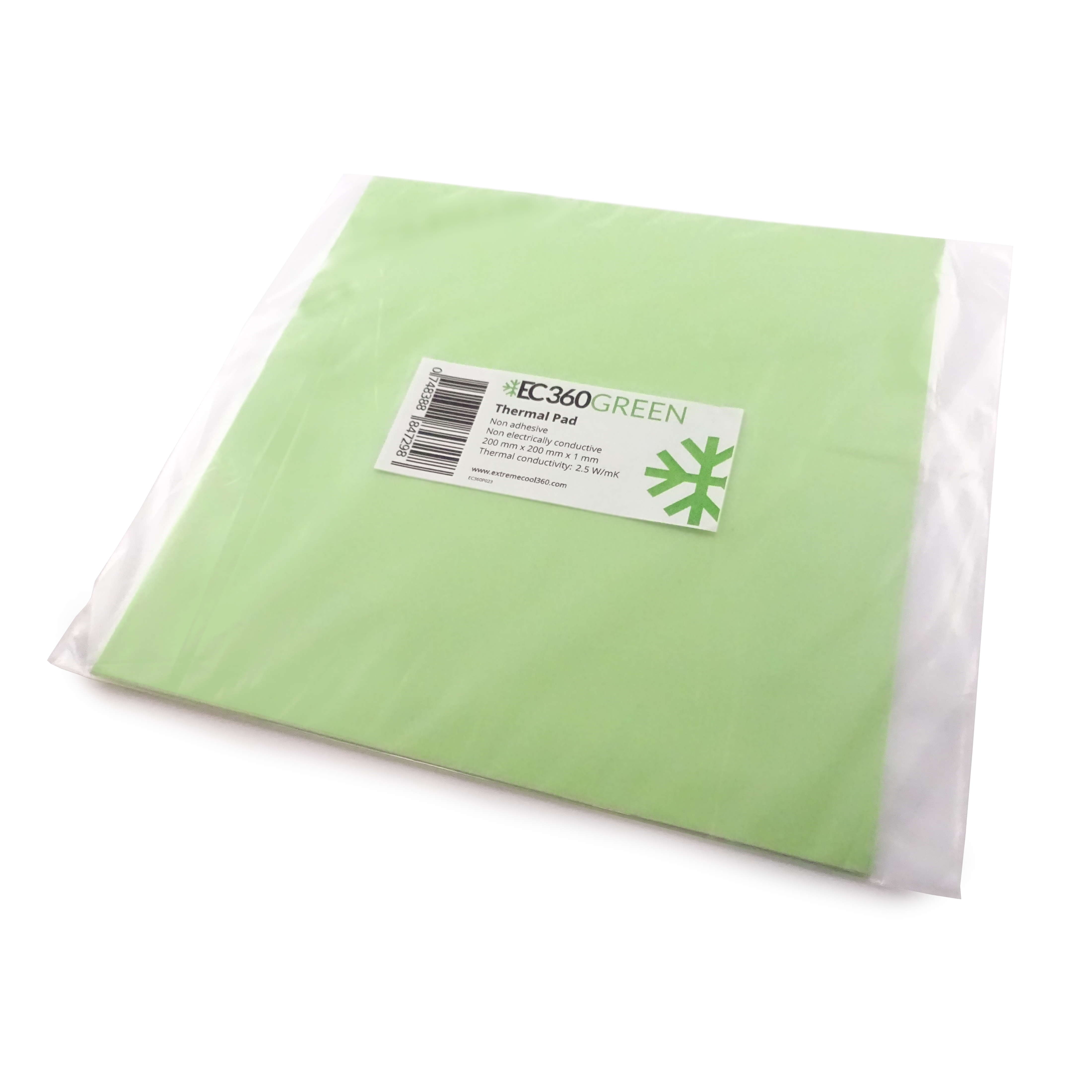

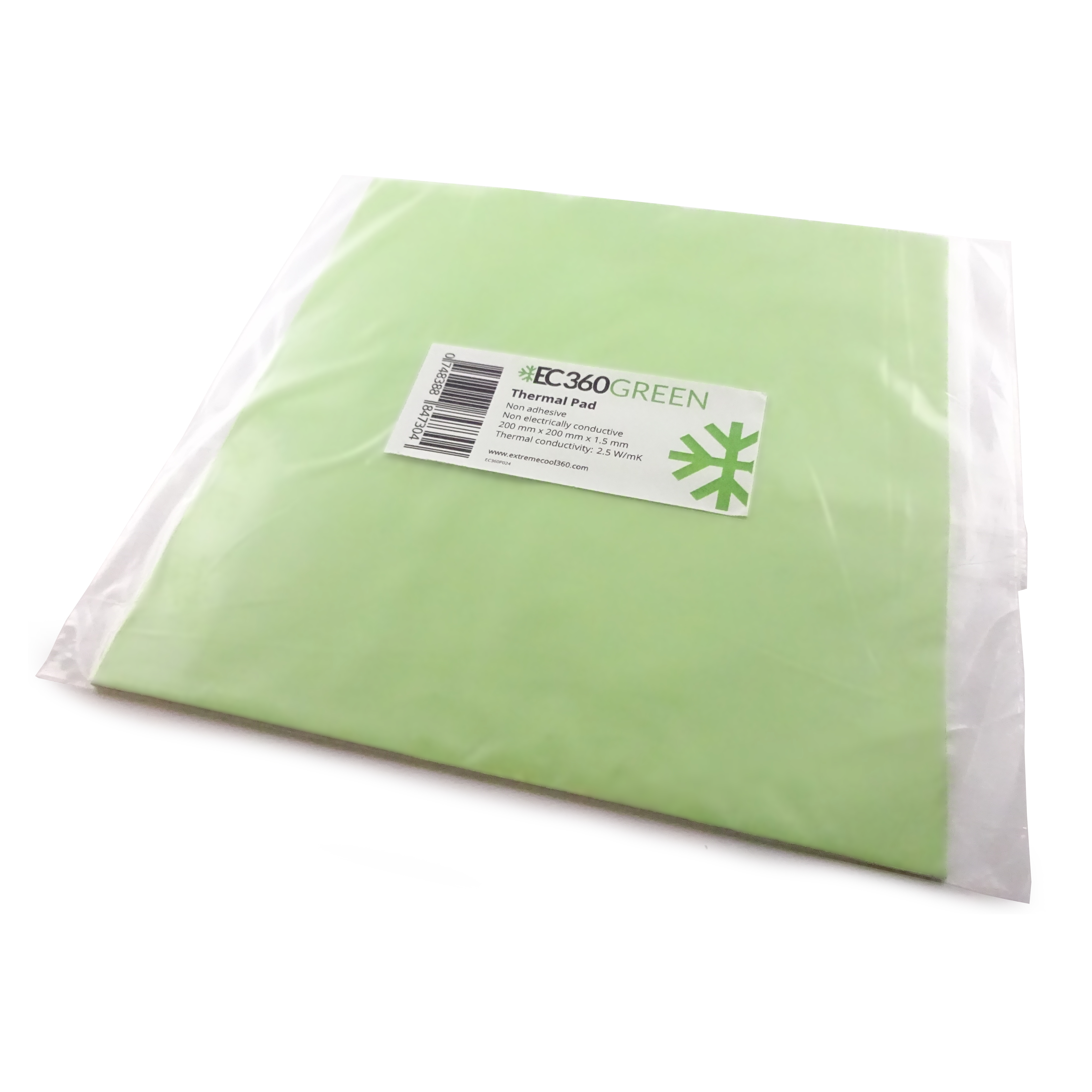

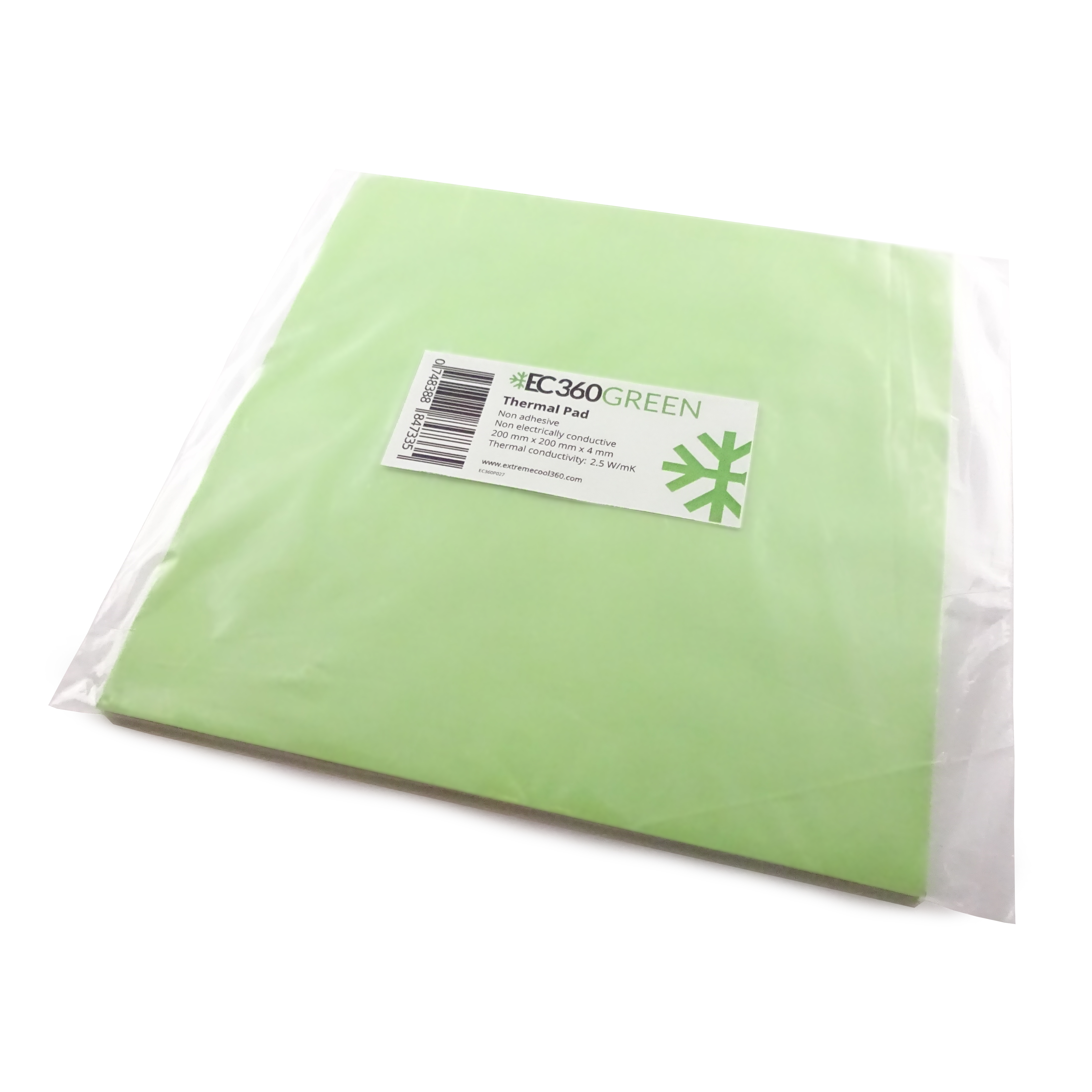

EC360® GREEN 200x200MM
